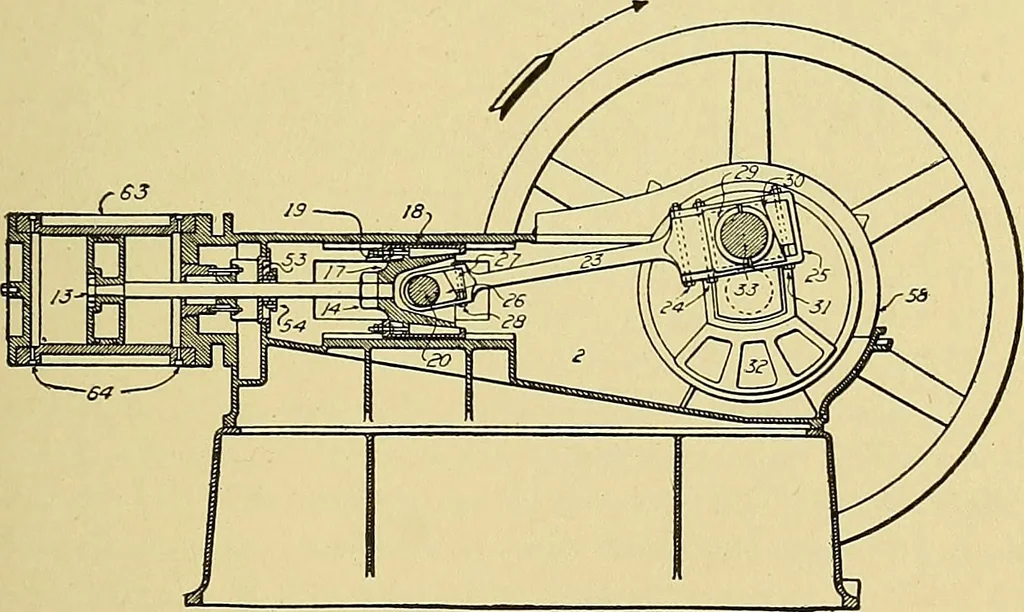

Fig. 5. Plan View of Modern Simple Engine that it is strong enough to take all the stresses put upon it. Thetype, size, and details of the frame vary with the type and size of … Fig. 6. Side Elevation of Modem Simple Engine the engine of which it is a part. Usually the lower guide, valve rodguide, and seats for the main bearings are cast integral with it. In 10 STEAM ENGINES small sizes the cylinder is frequently cast integral with the frame.Provision is always made for…
