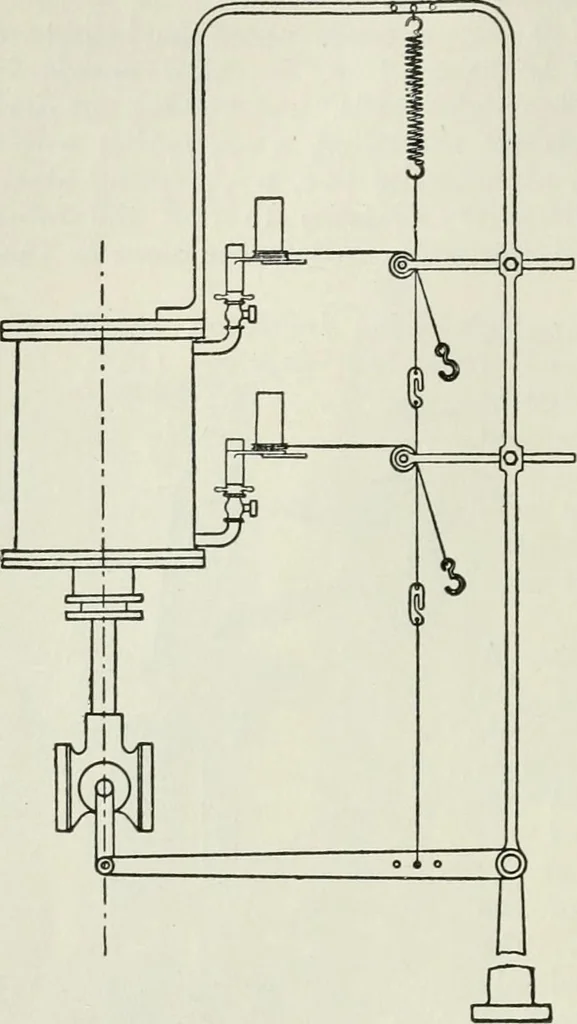

or this purpose it is neces-sary that the ratio AB : ACshould be constant for allpositions of the crosshead (seeFigs. 103, 105, and 106), whereC represents a pin moved bythe crosshead of the engine,and B the pin to which theindicator string is attached.The cord is carried awayfrom the pin B… … Fig. 102.
