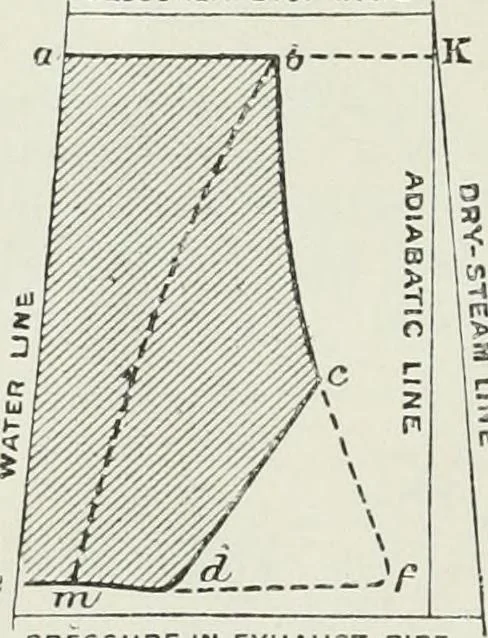

ortion of dry steam present in the cylinder; in otherV7ords, the extent to which the dry-steam fraction line he of theactual engine diagram, shown shaded, approaches the dry-steam lineof the chart, enlarging or otherwise the area of the shaded diagrambetween the water-line and the dry-steam line.… … PRESSURE IN EXHAU3T-PIPE Fig. 134. QUALITY OF THE STEAM IN THE CYLINDER. 119 fall taking place at nearly constant volume, and following very nearlya constant-volume line of the chart. Wheti the terminal pressure of expansion is carried down to bacicpressure, the expansion line he extends to /; but…
