Ripper, William, 1853-1937 · London, New York [etc.] : Longmans, Green and co. · leaf 299

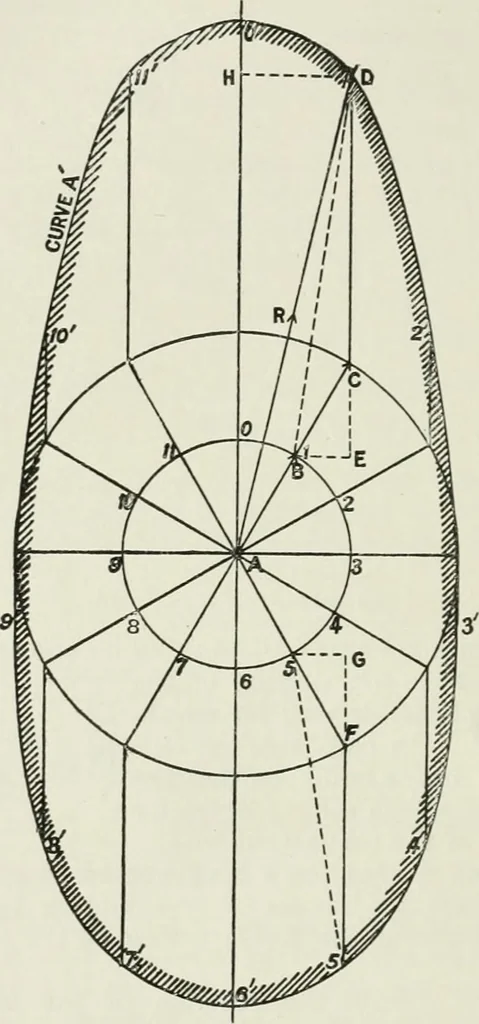

te the con-necting-rod may be esti-mated by a separateconstruction; but it isconvenient in practiceto consider part of theconnecting-rod as con-centrated at the crank-pin, causing a propor-tional increase of cen-trifugal force in thecrank, and part at thecross-head, as additionto the mass of the… … Fig. 333. mass so that M BP BG centred at the crank-pin, and M-^p at the cross-head.^ In accordance with this method, a distance BC, Fig. 333, is set off W from B equal to the centrifugal force of the added weight = — wV, CPwhere W = .^p of the mass of the connecting-rod, and r = the crank-pin…
Steam-engines
