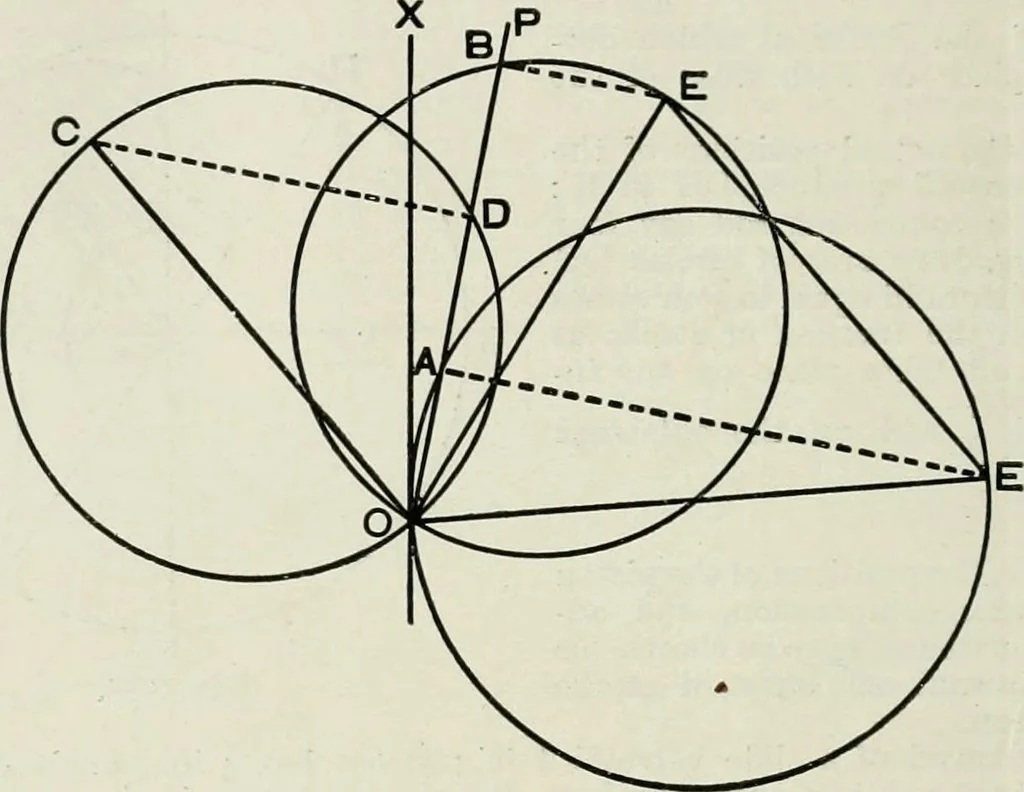

Fig. 489.valve diagram is 490 QUESTIONS WITH SOLUTIONS. from its central position {see proof of Zeuner valve diagram, p. 483). ThereforeAB is the relative travel of the valves. Join EE and draw 00 equal and parallel to EE. Describe a circle on EE asdiameter, then the chord OD is the relative travel… … Fig. 490. Join CD, BE, BE. The angles at CDO, EAO and EBO are right angles,being angles in a semicircle. Hence OD ■= AB, as they are the projections ofequal and parallel lines 00 and EE on OP. V. THE IlSlDICATOR. 1. Steam qjiters a cylinder at the absolute pressure 120 lbs. per square inch,…
