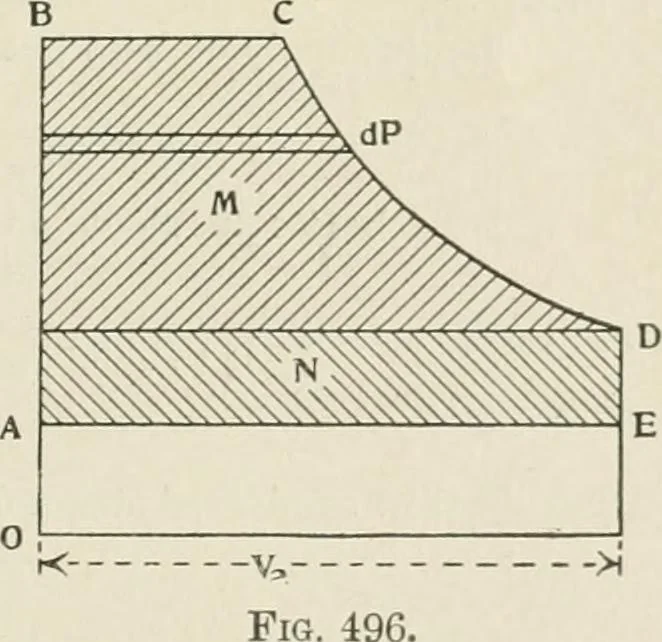

bsolute pressure of the steam at D.Pj = absolute pressure of the steam at E.V._, = volume of the cylinder in cubic feet.The total work done is represented by the simi of the areas M and N.Then area j\I = \v . dp in foot-lbs. where v = the volume of the steam per lb. but 1; = -^- .^p (see p. 429).… … Total work done = areas M -}- N = 1437 logo g-0-7(Ti-T2)-f 496. (P. - PzWz X 144 778 12. Calculate from the steam tables the maximum work obtainable from 1 lb.of dry saturated steam when working between pressures of 100 and 2 lbs. persquare inch absolute: (a) on the Rankine cycle; (b) on the Carnot…
Steam-engines
