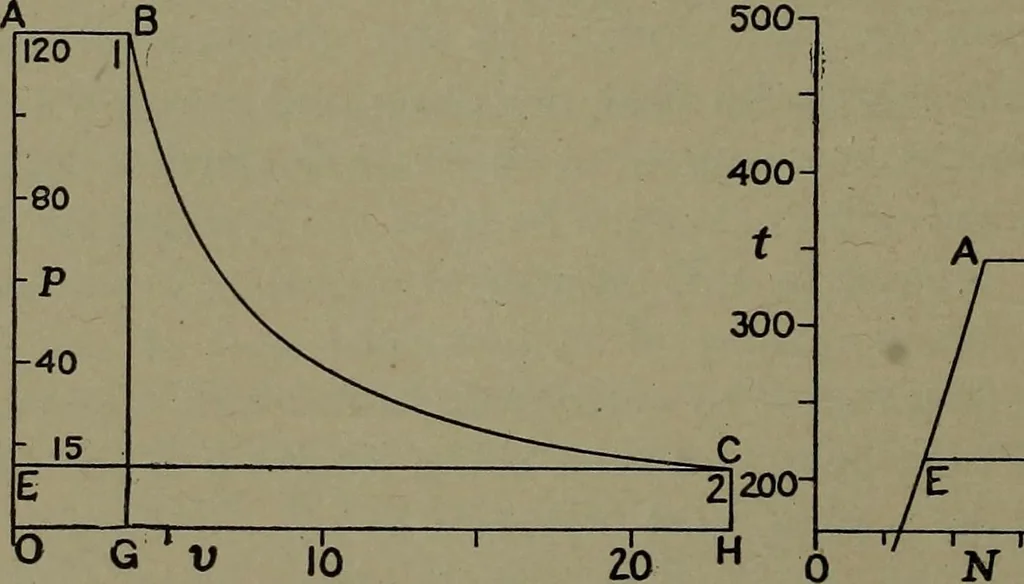

of the water it pushes out the layer ahead of it,and so there is a continued transmission of pressure work until themoving piston is reached, and the external work of vaporization isfinally done upon that moving surface. The steam is supposed toflow along the pipe without loss of pressure or of… … 1 Fig. 55. — Pressure-volume Diagram Fig. 56. — Temperature-entropy Dia-for the Rankine Cycle. gram for the Rankine Cycle. These diagrams are drawn with the same governing conditions as in Figs. 53and 54; computations in Example 15. off at B there is adiabatic expansion from B to C, carried clear…
