The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 191

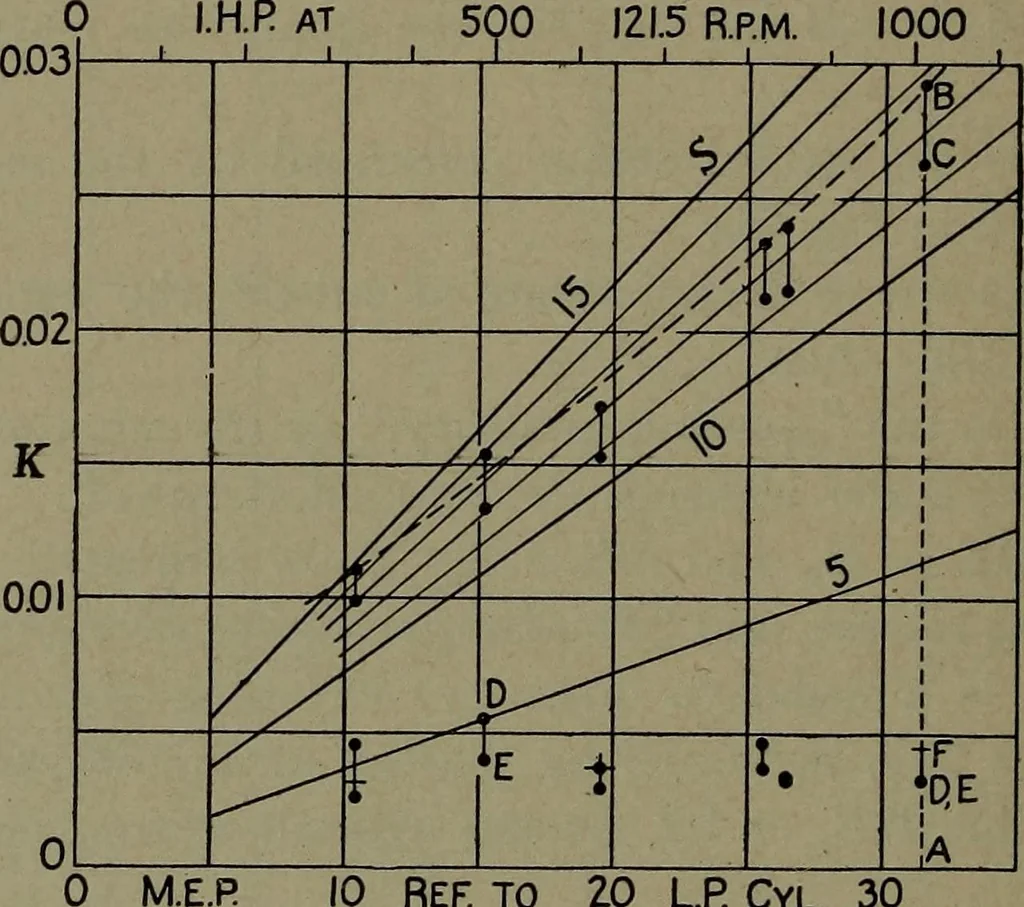

which are involved in the action ofthe cylinder walls. From this point of view an approximate idea of 174 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. the power of the engine is enough, and when the speed varies only aspermitted by the governor, the horse-power scale gives the load… … 0 M.E 10 REF. TO 20 LP. Cyl. 30 Fig. 88. — Tests of a 20 and 40 by 42 inch Corliss Cross-compound Engine, withsteam jackets and a reheating receiver. D. S. Jacobus, Trans. A. S. M. E.,Vol. 24, 1903, page 1274. No. 26 in Table 13, page 268. (I) The Unit Steam Diagram. — Having the specific steam…
Steam-engines · Steam-turbines
