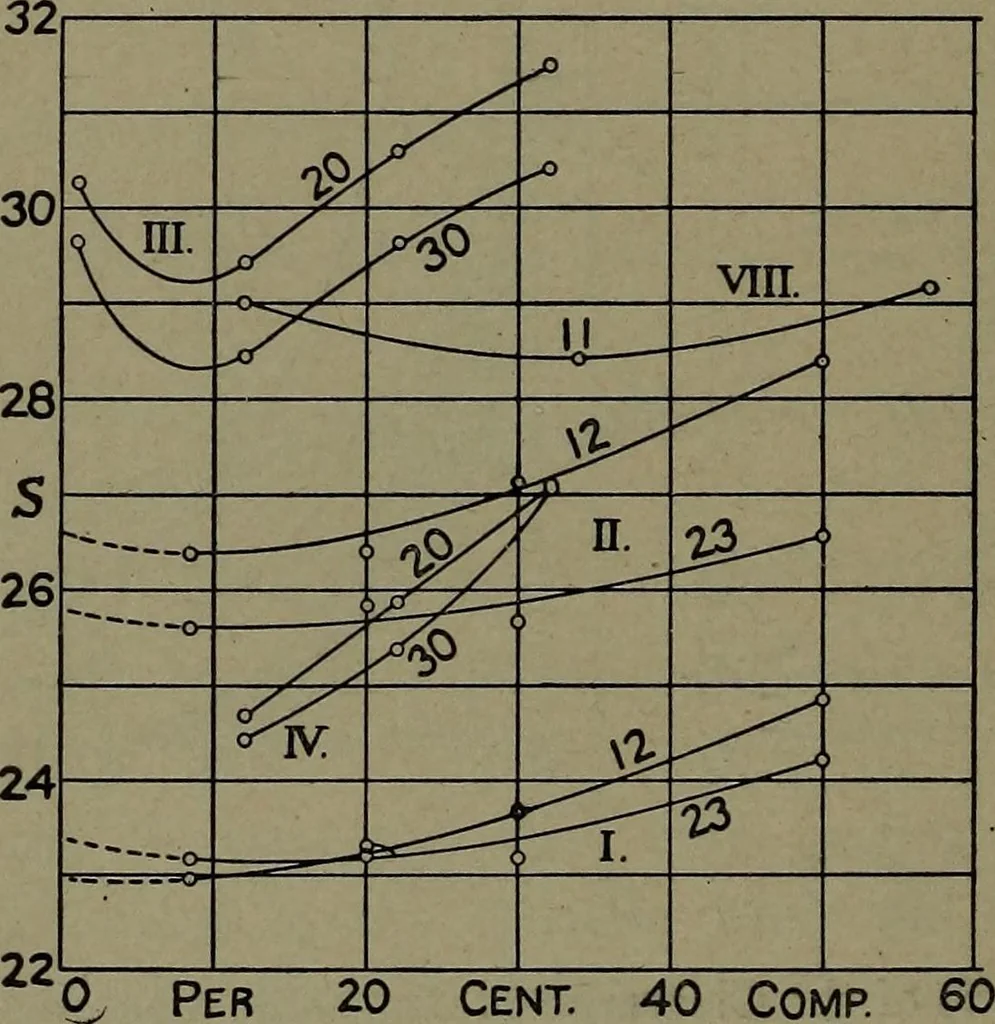

ds like thatof Fig. 107. In terms of Fig. Ill, test 4, jhe gain from a moderate compressioncontinues so long as area AKG decreases more rapidly than EFKHincreases. ] (g) Tests with Variable Compression.—In Fig. 112 is plotteda set of tests made to determine the effect of compression upon… … Fig. 112. — Tests on 7.1 by 17.7 in. Corliss Engine, at Dresden, A. H. Klemperer,Zeitschrift des Vereines deutscher Ingenieure, 1905 I, page 797.Clearance 0.045, increased to 0.152 in series VIII; speed 101 to 102 r.p.m.Series I, II, VIII, steam at 100 lb. abs., condensing.Series III, IV, steam at…
