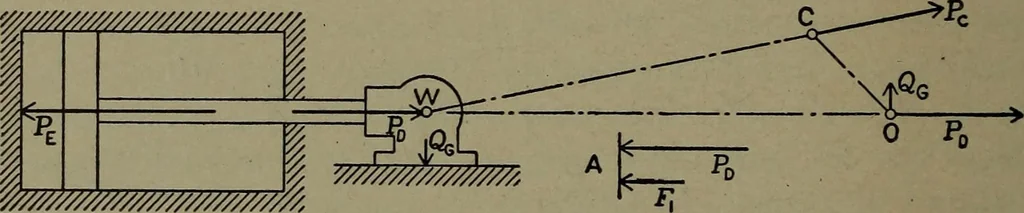

aft asall acting in one vertical plane. But in some cases this is only a repre-sentation of resultant effect: with a side-crank engine, for instance, itis necessary to go through quite a complex analysis in order to de-termine the forces on the bearings and the stresses in the shaft. (/) The Forces… … mmzmzmm&w/, Fig. 156. — Forces on the Engine Bed. The driving force Pd combines with the guide reaction to give thecrank-pin pressure Pc; and this, transferred to the center of the shaftaccording to Fig. 155 II, and there resolved back into its components,gives the forces Qg and Pd as exerted…
