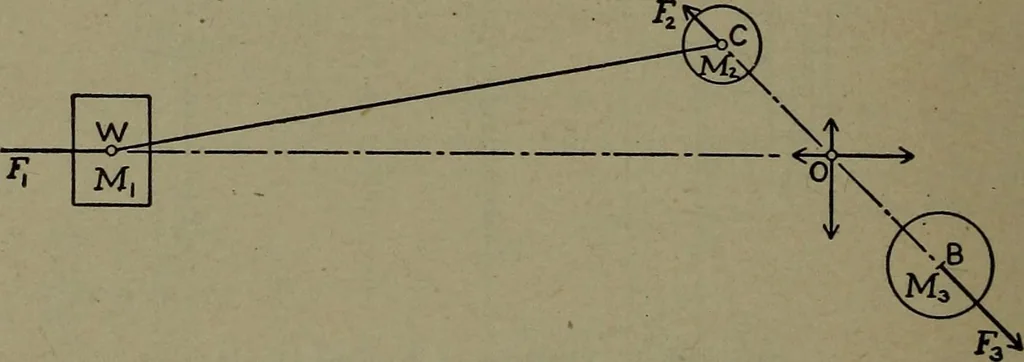

ion of bearing pressure is nearly along, the stroke line of theengine. Similar diagrams can easily be drawn for the outboard bearing,keeping in mind the reversed directions of the components of P andFB at 02. § 35. Balancing the Engine (a) Forces and Masses Involved. — As brought out in § 30 (/)and… … Fig. 190. — Accelerated Masses. volved in the problem of balancing, or of reducing the resultant freeforce to the least attainable value. The masses are Mi = total reciprocating mass, including part of the rod. M2 = mass at crank pin, which may include, besides the rest of the rod, the crank pin…
