The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 403

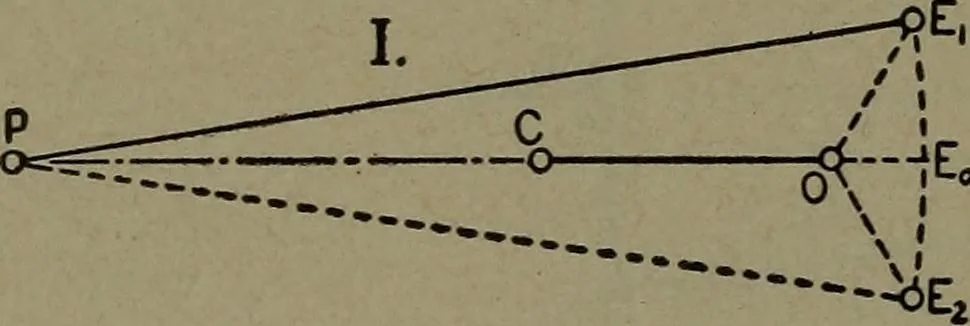

of move-ment past E0 to E2; then the lower half of the locus of E will corre-spond with, and will produce, reversed running of the engine. The locus of the equivalent single eccentric, for the link motion isshown at II and III of Fig. 245 for the respective cases of open andcrossed rods. In strict…
Steam-engines · Steam-turbines
