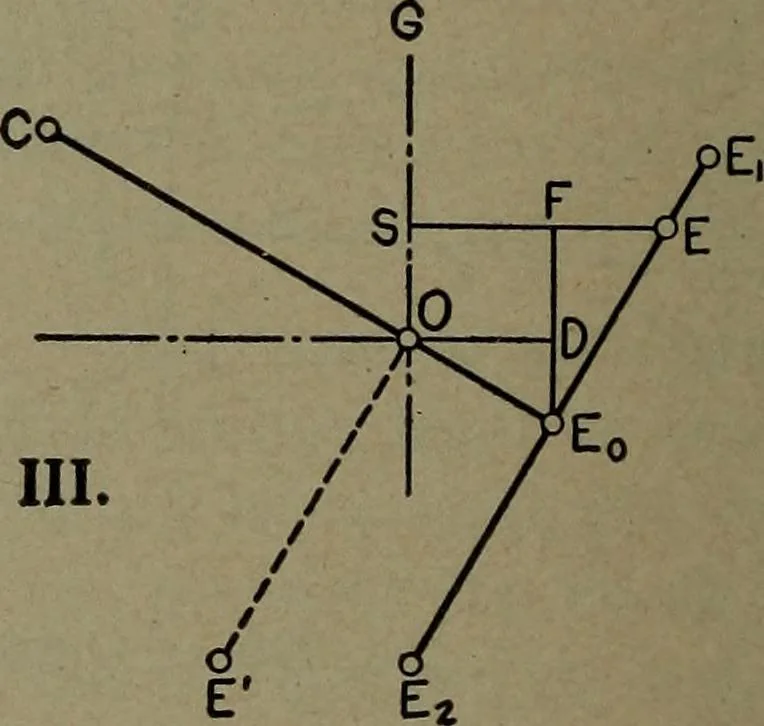

Fig. 251. — Derivation of Equivalent Eccentric, Walschaert Gear. at H0, and KL is the final position when H has been given the dis-placement H0H = B0B. For the lever 6, let LH LK HK = m, HK = (l + m); then the displacement L0Li is equivalent to that from an eccentricOE0 (at III) of the length r0 =…
