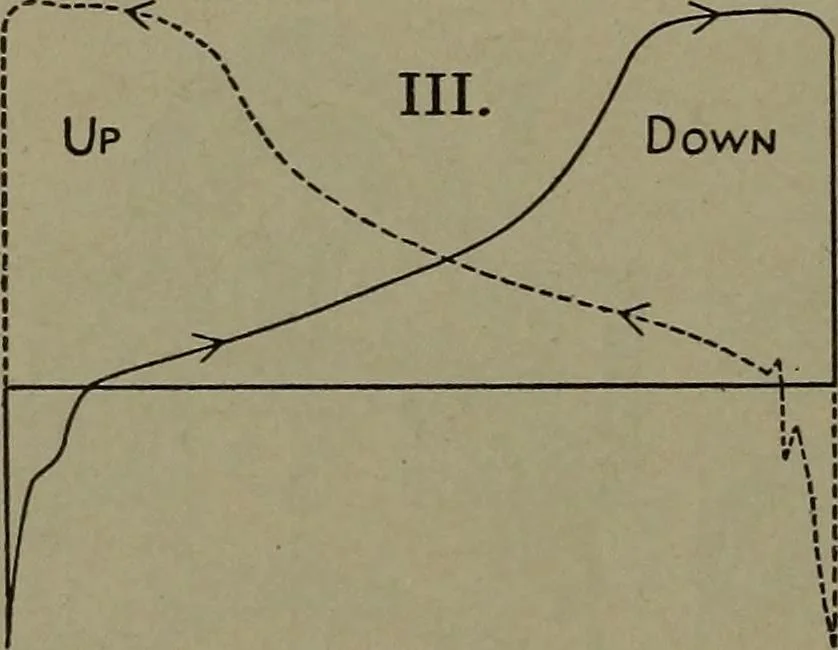

/ <-*N Up \\\ \ s IV. / Down 1 i• Fig. 289. — Pressure Diagrams from the Air-brake Pump. approximates a rectangle — except as the reaction may be modified bythe effect of inertia of a long column of water. When the resistance isnot constant, but increases along the stroke as in the air-brake…
