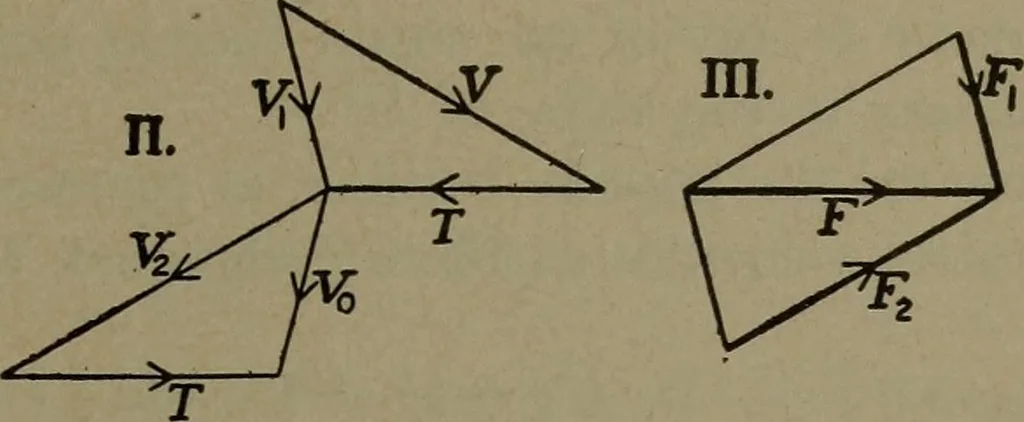

is a non-effective component F-r, act-ing to cause pressure in the bearings, but which can easily be balanced byadmitting steam to diametrically opposite parts of the wheel. § 46 (/)] DYNAMICS OF JET ACTION. 443 The reaction vanes in Fig. 313 differ from the limiting form in Fig.310 in that they… … Fig. 313. — Diagrams for the Reaction Turbine. projection of V, giving V\ the slant shown. Then the vane profiles aremade to fit the velocity diagram, as in any case. (g) Work on the Vanes. — The effective dynamic driving forceF (called Ft in the preceding discussion) acts upon vanes which havethe…
