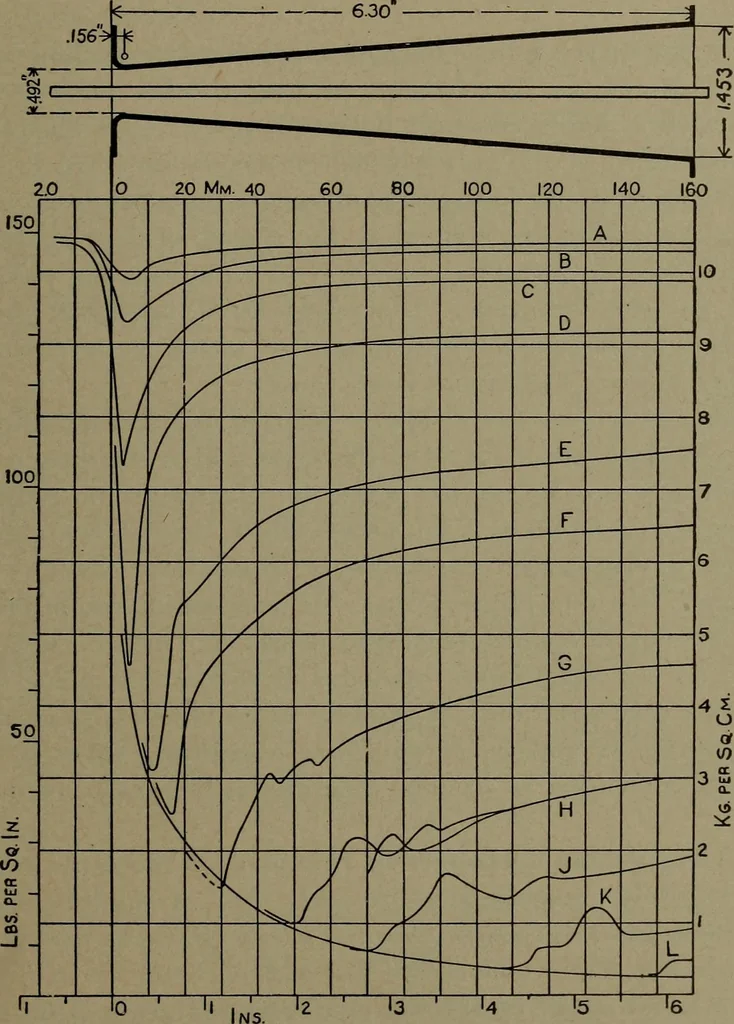

urther intended to illustrate what happenswhen the nozzle expands too much, or has too great an area ratio for § 47 (/)] EXPERIMENTS ON THE STEAM JET. 461 the existing pressure ratio. In the figure, with Rp equal to 0.3, dropto this P2 is accomplished at CD, and the nozzle should end there. Inthe… … Fig. 332. — Curves of Pressure Variation in a Long Nozzle: experiments by Stodoladiagram redrawn from Stodolas Steam Turbines. involves a considerable dissipation of progressive velocity into secondarymotions, and the reconversion of kinetic energy into pressure work asthe stream is retarded and…
