The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 74

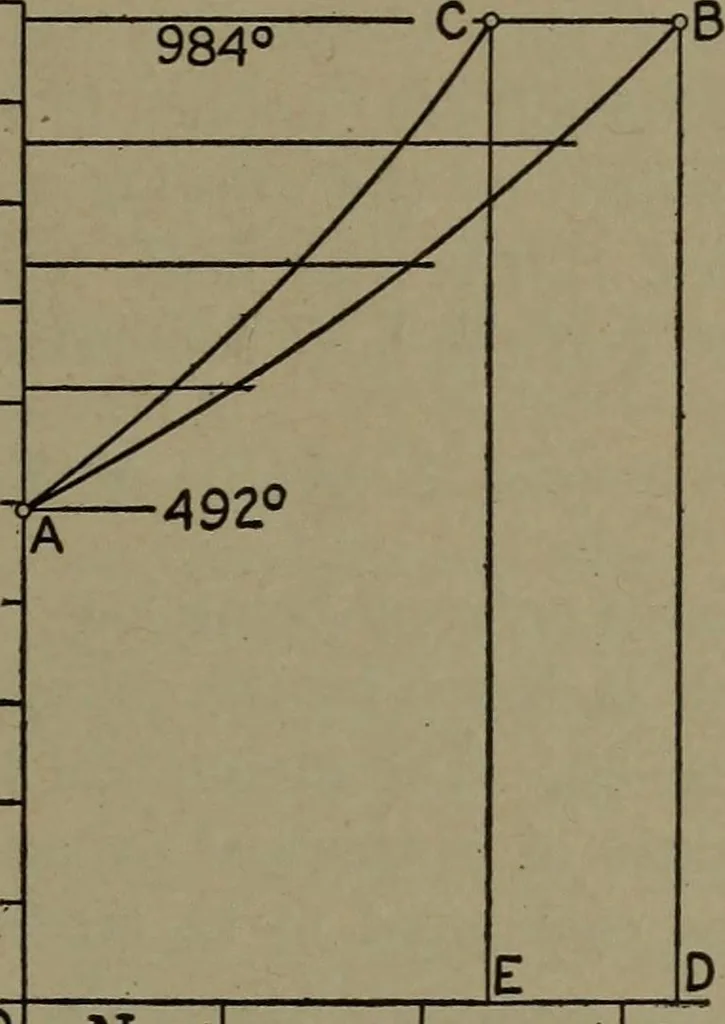

.3891 X 0.30103 = 0.1171 = OE. Of course, calculation must § 9 (&)] THE TEMPERATURE-ENTROPY ANALYSIS. 57 be made for a number of intermediate points in order to lay out eithercurve on Fig. 35. The area under the curve equals the total heat im-parted; thus ABDO = QP = 0.2375 X 492 = 116.85… … 0 n o!o5 o:i o:i5 Fig. 35. — Thermal Curves forOperations in Fig. 34. 100-
Steam-engines · Steam-turbines
