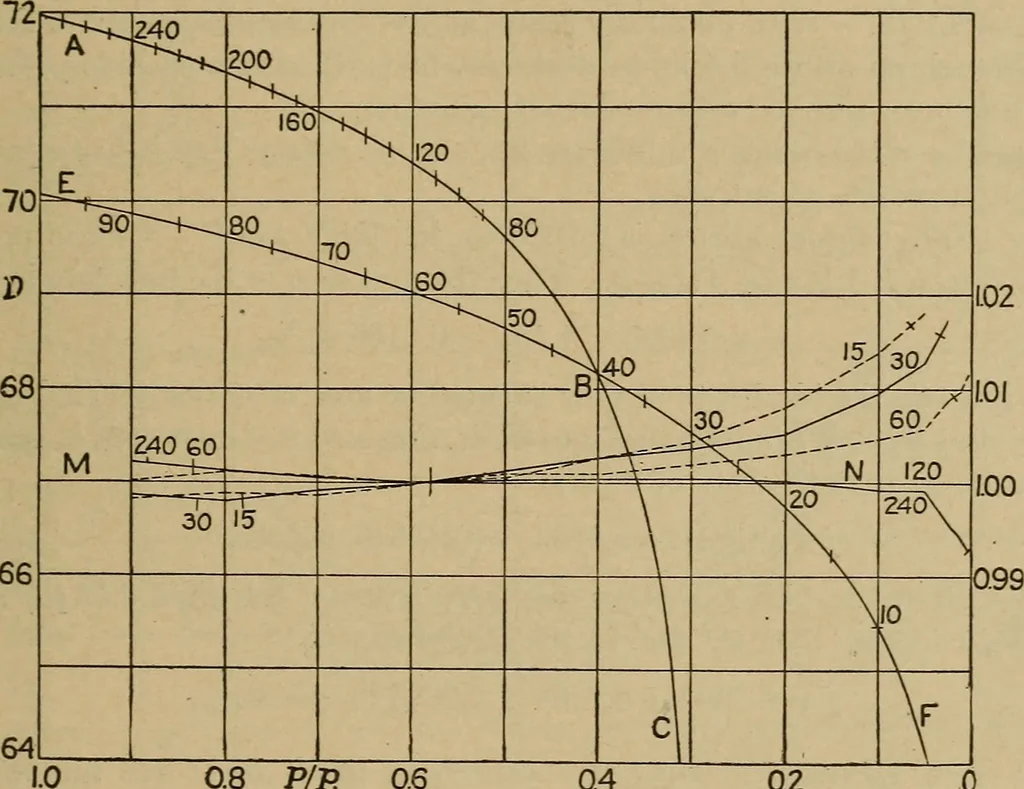

se to calculate the flow of steam throughan orifice,, is P- (106) / = 70 in which a is area of orifice in square inches, p is initial absolute pressure(our pi), and / is the weight of steam discharged per second. Thisformula holds if the low-side or terminal pressure p2 is not greater than0.6 pi —… … 0.6 0.4 02 0.8 P/P^ Fig. 64. — Comparison of Jet Areas. Similar to Fig. 63 in general scheme. The curves on base MN, to scale at right,show departure of jets from true similarity: see § 16 (g). The curve ABC-EBFis the Napier divisor D, to the scale at the left, and with the scale of…
