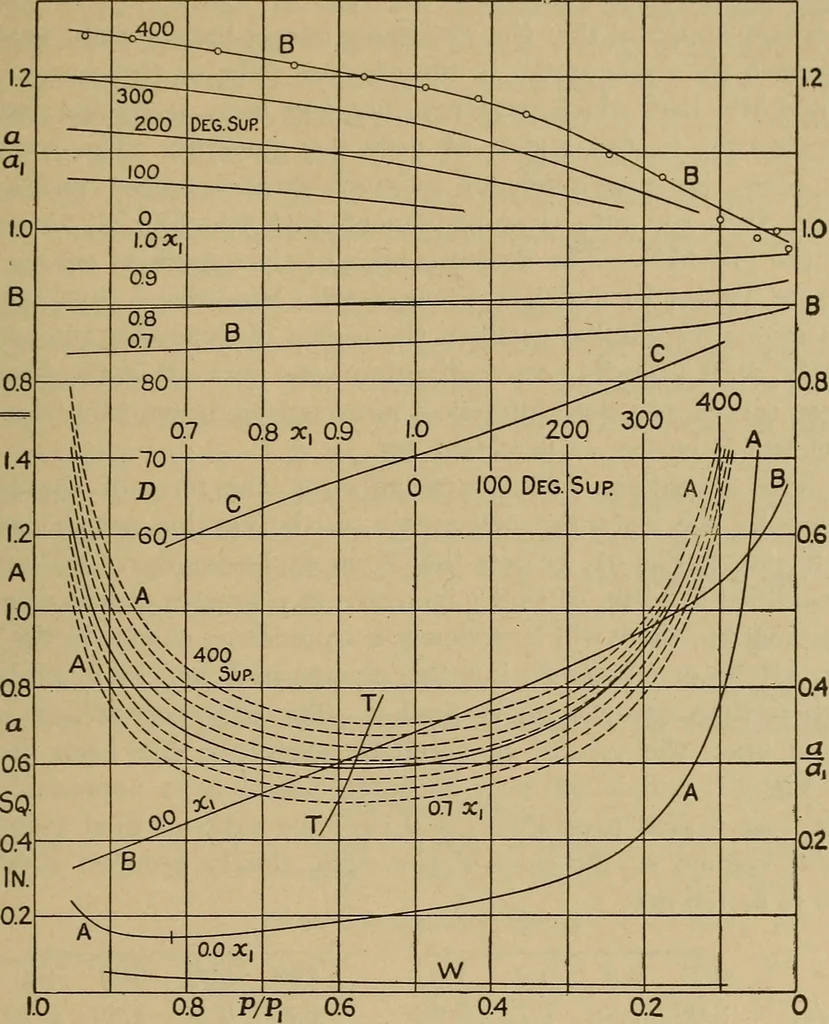

nd then show-ing a much higher rate of enlargement. The only striking feature ofthe superheat curves is the general tendency to become relativelysmaller, or to have a smaller rate of enlargement after passing the throat; 16 m THE DYNAMIC FORCE CYCLE. 123 this is shown especially by their crowding… … -1 Fig. 65. — Comparison of Jets with Different Initial Condition, All for 120 Lb. Initial Pressure. Curve groups A and B are on the base of pressure ratio; group A shows jet areasdirectly, group B relative areas. Curve C, on a base of quahty x and superheat s,gives the Napier divisor D. the area…
