The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 152

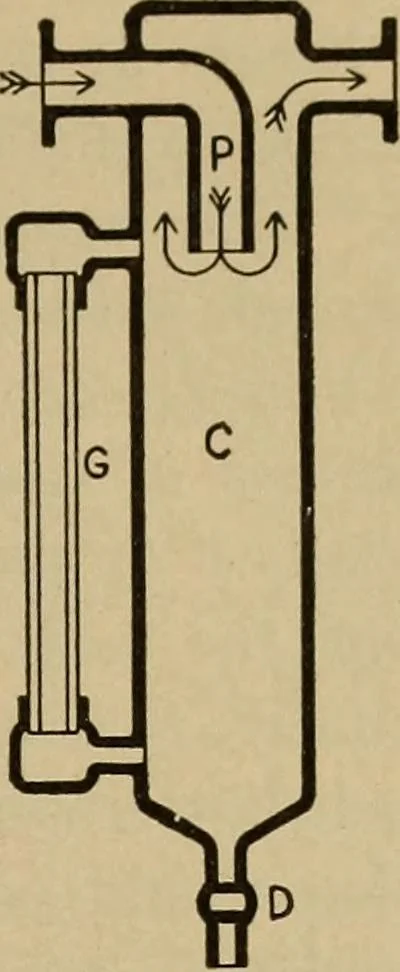

be a throttlevalve or a discharge orifice in its steam outlet. Inany case, the drain valve D is so manipulated as tokeep the water in the chamber C at or near a certain level (shown in the glass gage G), well below the Fig. 71.—Separator , „ , . . . -r. Calorimeter. mouth of the mlet pipe r. If gfi… … mi = 92 (109) (m) Accuracy of Steam Calorimetry. — Along several lines errorand unreliability may creep into the determination of quality of steamby the methods just given. These will now be briefly described, butnot discussed in detail. The sample drawn into the calorimeter is likely to be far…
