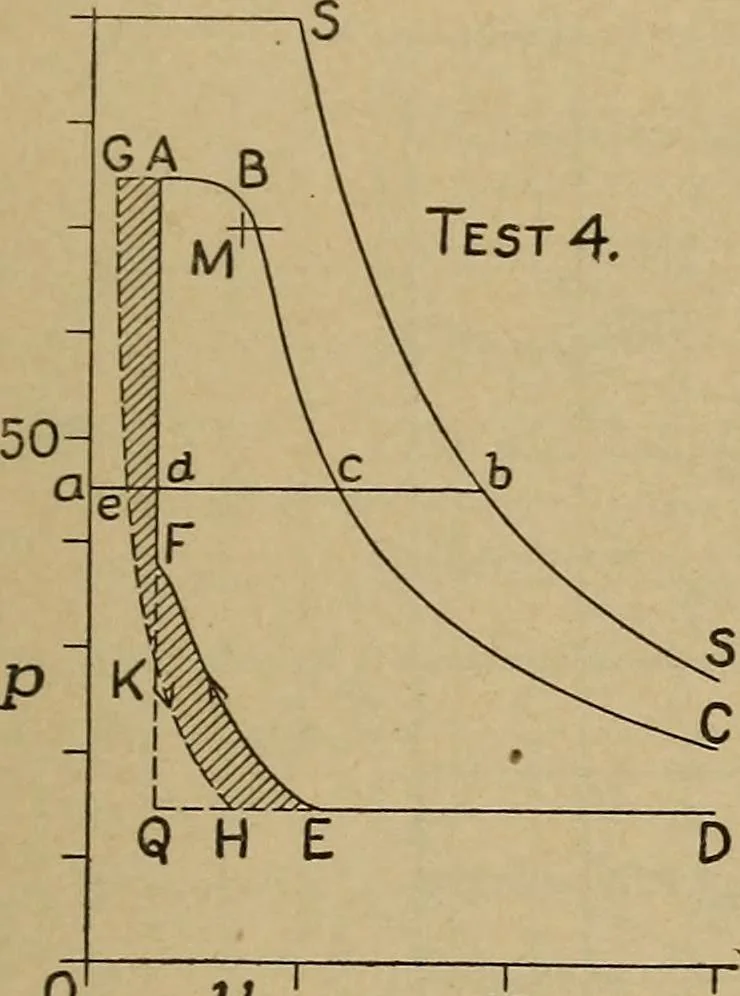

h incom-plete compression, test 4, the manner in which the new steam con-tinues to compress the old steam, above F, is indeterminate; but sincethis action involves the kinetic loss explained in § 19 (i) and (j), it isproper to make the line FA serve as one of the boundaries of the lostarea. Of the… … - AG |\ Test 6. 50-a V m^ ^\^^ % ^^ ^^^=^^ - Q j H E D 0 v lb ■ 20 - ^ 10 Fig, 111. — Cycle of the Clearance Steam, same diagrams as in Fig. 109. the new, working steam; but ultimately all the loss comes upon thelatter, whence results the fall in efficiency which occurs when compressionis increased…
