The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 322

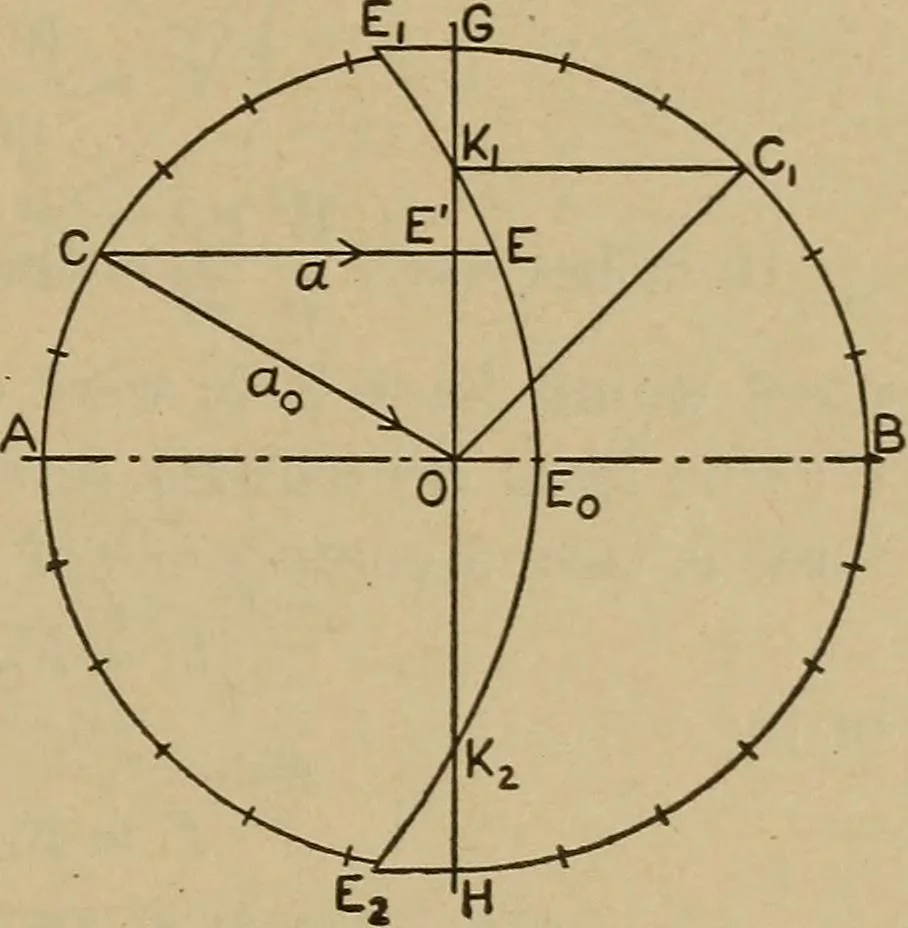

2 aji m = 0° (-S 90° _R L 180 (-9 270° _R L Also, for Q! = 45 deg., 135 deg., etc.(that is, for any mid-quadrant crankposition) 171= ± cos a. Now in Fig. 167, the radius of thecircle is a^: and for infinite rod it isevident that the horizontal distanceCE, from the C-point to the line GH,will give a… … OEo = GEi = HE2=^AO; Fig. 167. — Acceleration Diagram. R and two more by noting that the curve must cross GH where m = cos a,at the mid-quadrant points Ki and K2. Without any further deter-minations (unless the figure be very large), a fair curve can be drawnthrough these five points which will be…
Steam-engines · Steam-turbines
