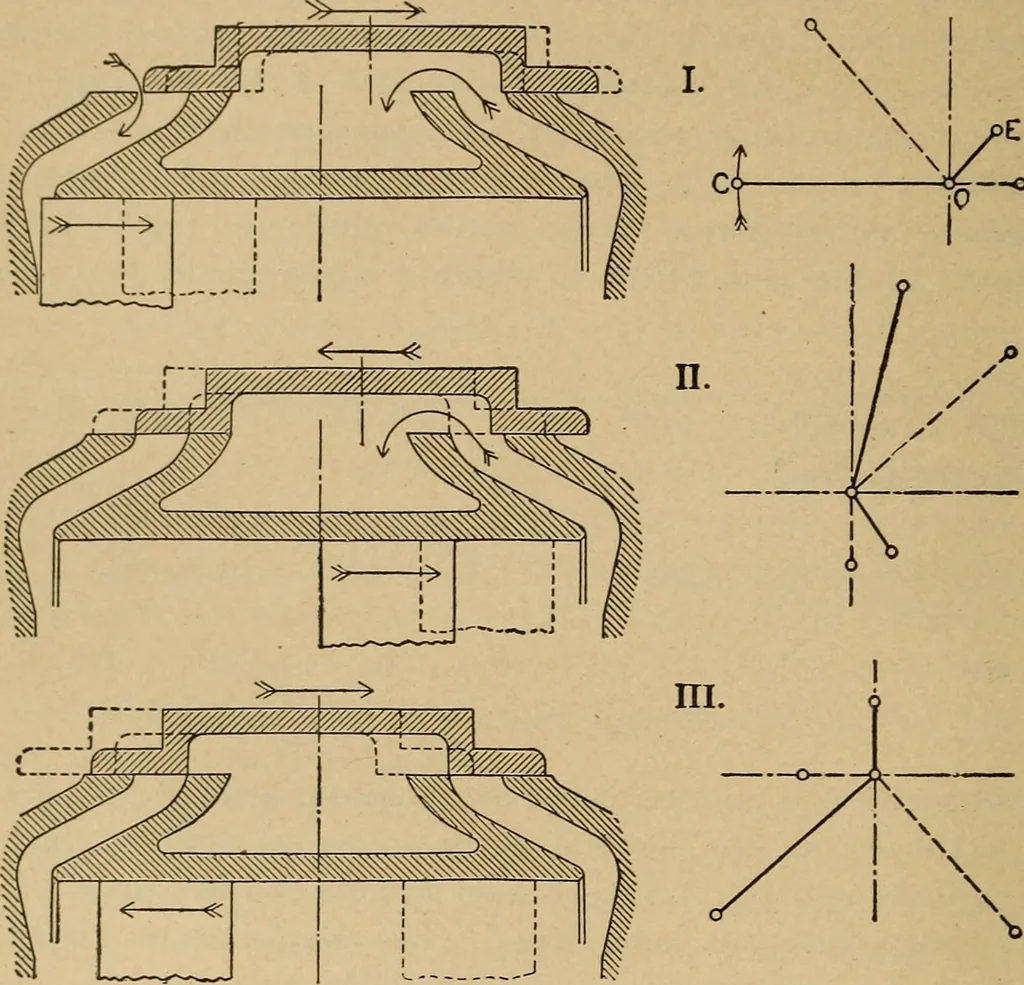

lvemove toward the right, until the dotted-line position is reached; here the 18 A GENERAL VIEW OF THE SUBJECT. [Chap. I. valve is at the right-end Hmit of its movement, and the port has itsfullest opening. The valve now returns, gradually diminishing theport opening, until, in the full-line… … Fig. 14. — Valve Movement. In III the dotted position shows fullest opening for exhaust; thereafterthe valve returns toward the right until, as drawn in full lines, it closesthe port to exhaust and starts the compression. Examination will show that the timing of the events in Fig. 14 doesnot…
