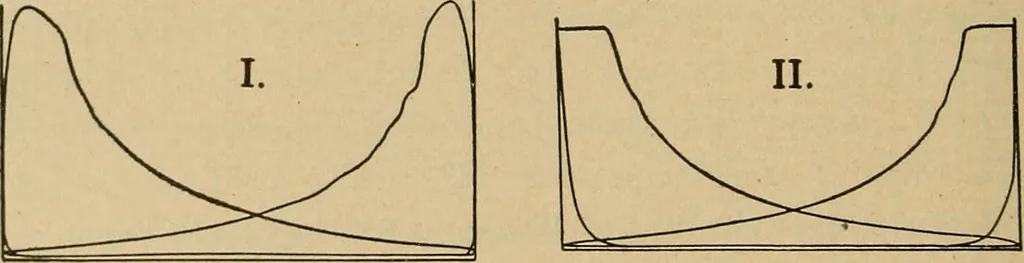

g. 274. — Indicator Diagrams from the Engine in Fig. 267. a sharp and usually rather early cut-off, release deferred till near theend of the stroke, and a compression curve which begins late but risesrapidly on account of the small clearance. At III is shown whathappens when the boiler pressure… … Fig. 275. — Faults in the Eccentric Setting. A great deal of the valve setting to be done on a Corliss engineconsists simply in adjusting the lengths of the various rods. Fig.275, however, shows faults in the setting of the eccentric: at I it needs § 43 (/)] THE CORLISS VALVE GEAR. 413 to be…
