The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 441

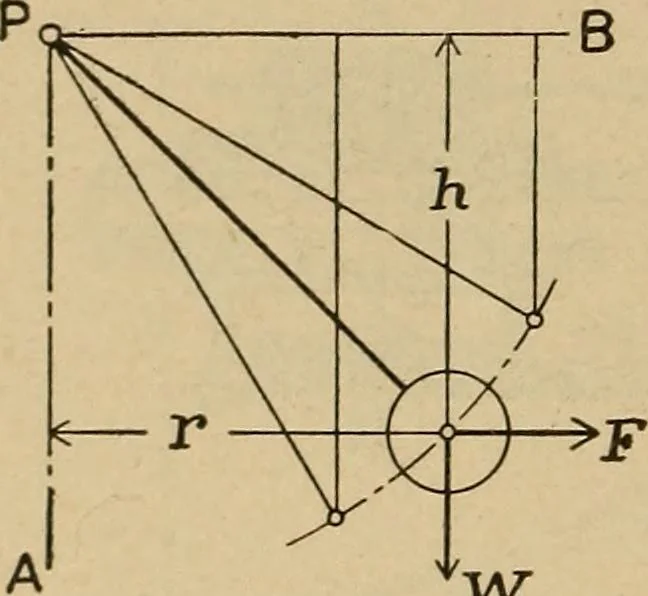

e arm pivoted _, , at P can swing in the plane of the drawing. Fig. 291. — Element of , ., ^. • , , ^ ^. . 1 the Fly-ball Governor. while this plane has a rotary motion about the axis AP. For equilibrium, centrifugal force F must balance gravity force W, or there must be an equation of moments, Fh… … aWNrh = Wr, and N = b\/i- (210) 4 § 45 (6)1 STEAM-ENGINE GOVERNORS. 427 This shows how the balancing speed varies with the position of thependulum arm. The equilibrium represented by Eq. (208) is a perfectly generalrequirement: but the transformations which follow belong to the par-ticular case. If…
Steam-engines · Steam-turbines
