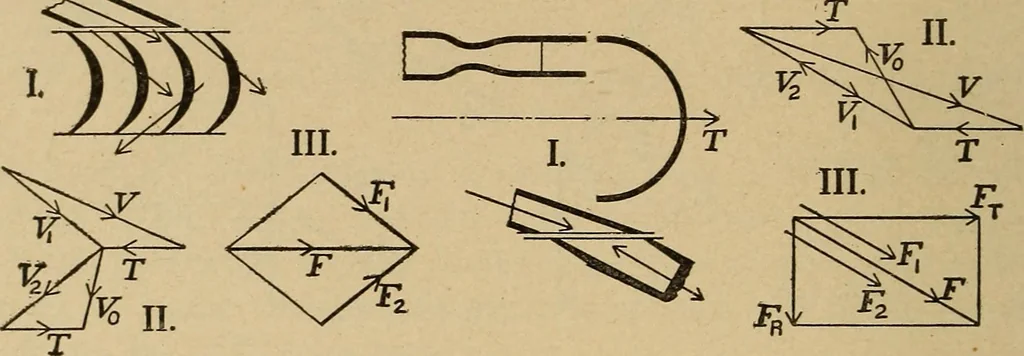

nction can be drawnin that the effective exit reaction in an impulse turbine is due whollyto deflection of the jet, while that in the reaction turbine is due to bothdeflection and linear acceleration. The dotted line F in Fig. 310 IIIshows what the resultant would be with F2 equal to Fi. After the… … Fig. 311. — The Radial Vane, withSide Admission. Fig. 312.— Bucket in Rim of Wheel,with Tangential Admission. no examples have been given in Chapter I; fuller illustration will befound in Fig. 354. In Fig. 312 the plane of diagrams II and III is thatof the lower, sectional view at I, or it is the…
