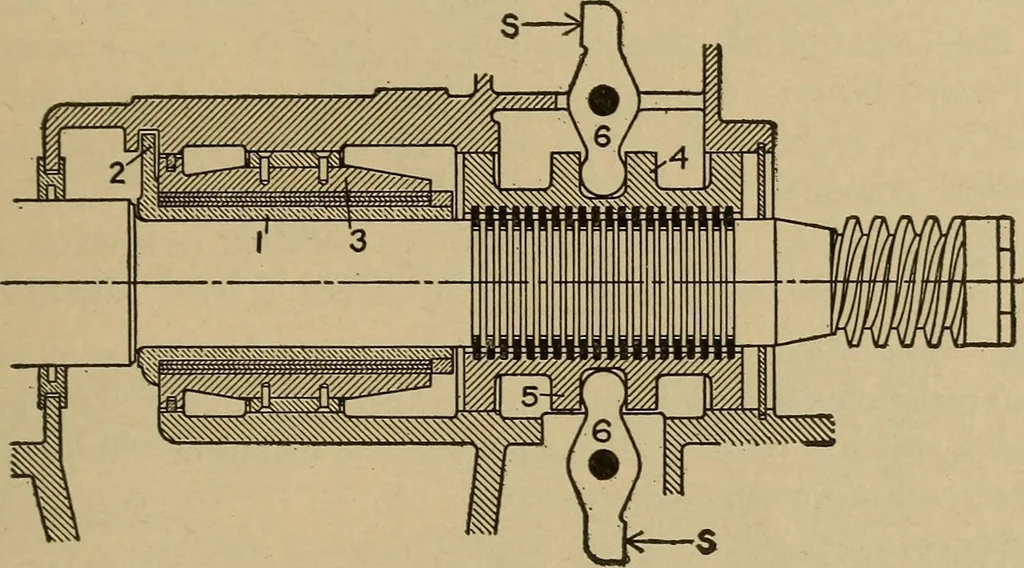

r as a stuffing box. The design illustrated in Fig. 361 has several special features. Itrepresents the smaller and quicker-running Parsons turbines, wheresome flexibility is secured by placing three thin cylinders between theinner and outer shells of the bearing; these are not tightly fitted,… … Fig. 361. — Bearing at Governor End of Westinghouse-Parsons Turbine — at right-hand end of Fig. 25. or labyrinth packing of the balance pistons. The upper and lowerhalves 4 and 5 are separate, and are adjusted in opposite directions bymicrometer set screws on the hues S, S. The worm at the right…
