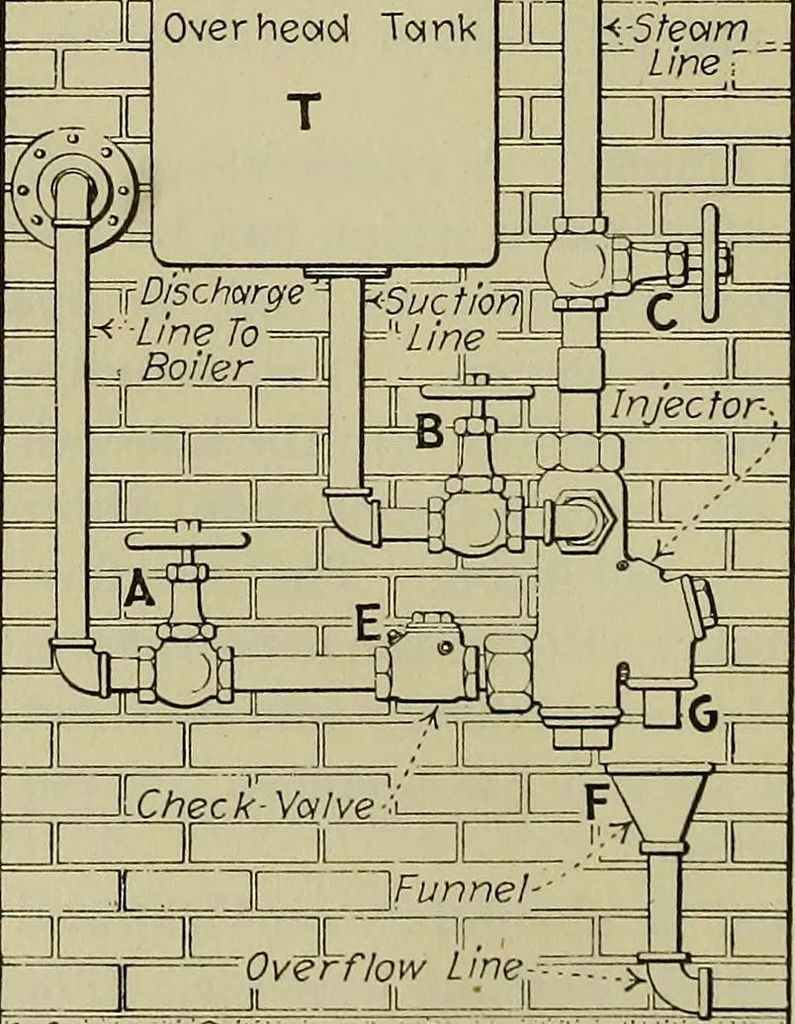

Fig. 189.—Hose-Connection Strainer For Fig. 190.—Pipe-Connection Strainer ForInjector Suction-Pipe. Injector Suction-Pipe. idtpH E Overhead Tank HL Dcz3 T … ■——ii—— Overflow line, I li IL • ! Fig. 191.—Injector Fed From Overhead Tank. starting difficult and operation impossible when there is even a smallleak in the suction line. Sec. 196] INJECTORS 169 If the injector is fed from an overhead tank (Fig. 191) or from citysupply under pressure, it is…
