Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 276

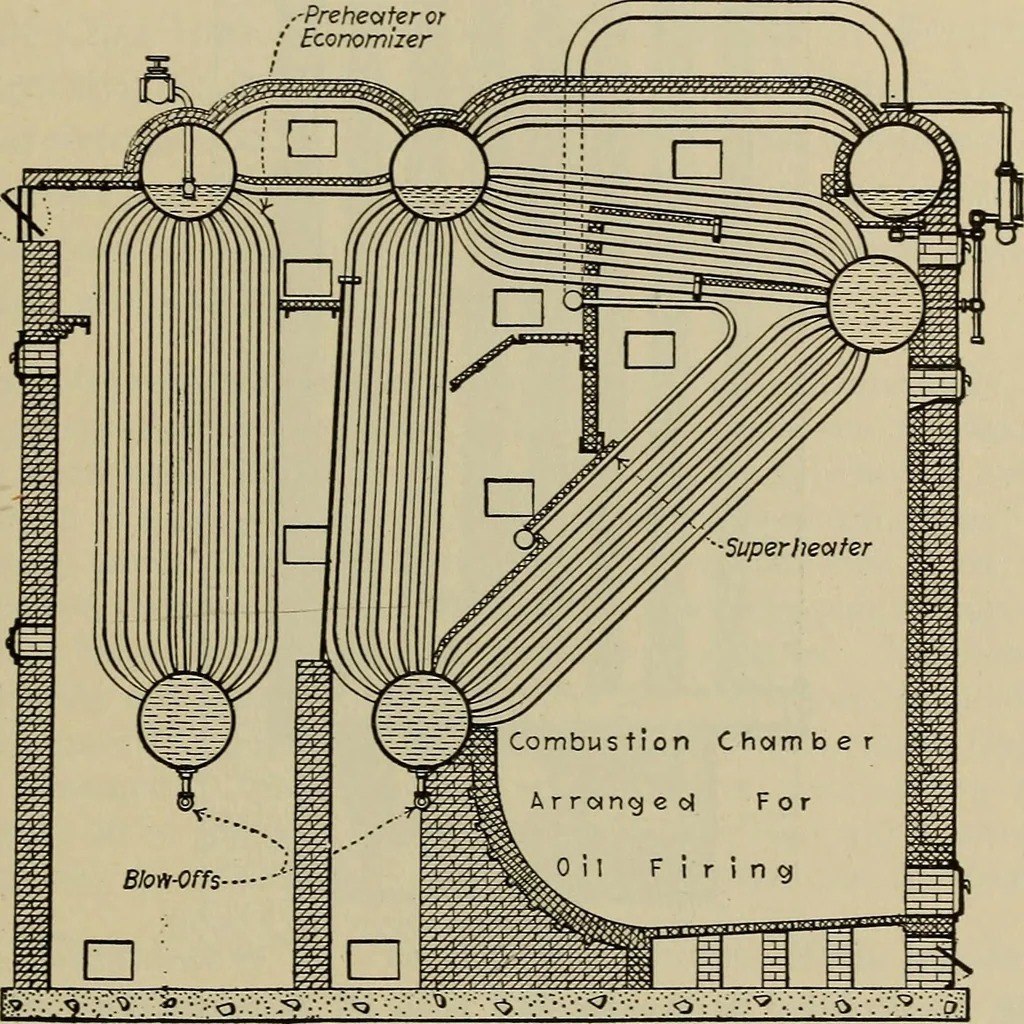

bes are commonly made of cast-iron. Theirusual dimensions are 4%6-in, diameter and 9- to 12-ft. length. Sec. 291] FUEL ECONOMIZERS 255 The water, which is discharged by the boiler feed-pump,passes through the headers and tubes of the economizer beforeit enters the boiler. The hot gases, which flow… … Fig. 258.—Badenhausen Boiler Directly Connected With Integral Economizer Or Preheater. Note.—Economizer-Tubes May Be Arranged In Either StraightOr Staggered Rows. The staggered arrangement (Fig. 261) affordsthe greater facility for heat-transfer from the gases. The straightarrangement (Fig. 260)…
Steam power plants · Pumping machinery
