Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 312

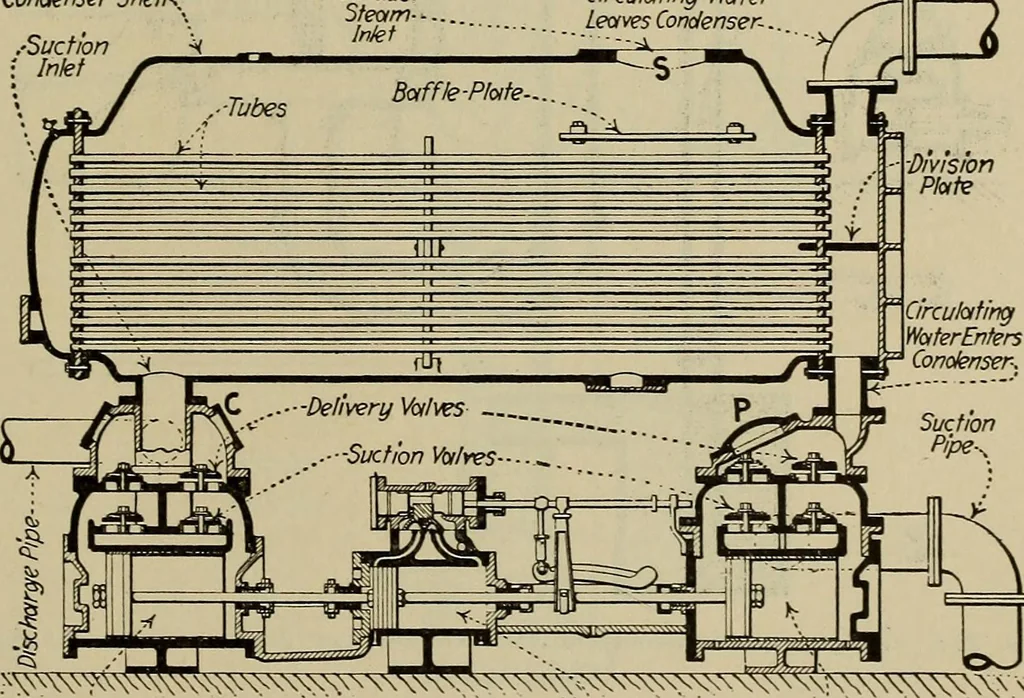

Shield to Prevent Water From # Dripping Into ToAir AirPipe Pump Fig. 292.—Elementary Double-Flow (Two-Pass) Surface Condenser. Condenser Shell- Exhaust- Circulating Water ^faT leaves Condenser-.. … ■Wet-Vacuum Pump Steam-Power Cylinder- Circulating Pump-- Fig. 293.—Typical Surface Condenser With Combined Circulating And Wet-VacuuiPumps Of Reciprocating Type. 292 STEAM POWER PLANT AUXILIARIES [Div. 9 Note.—Water-cooling is used almost exclusively in the operation ofsteam condensers. All…
Steam power plants · Pumping machinery
