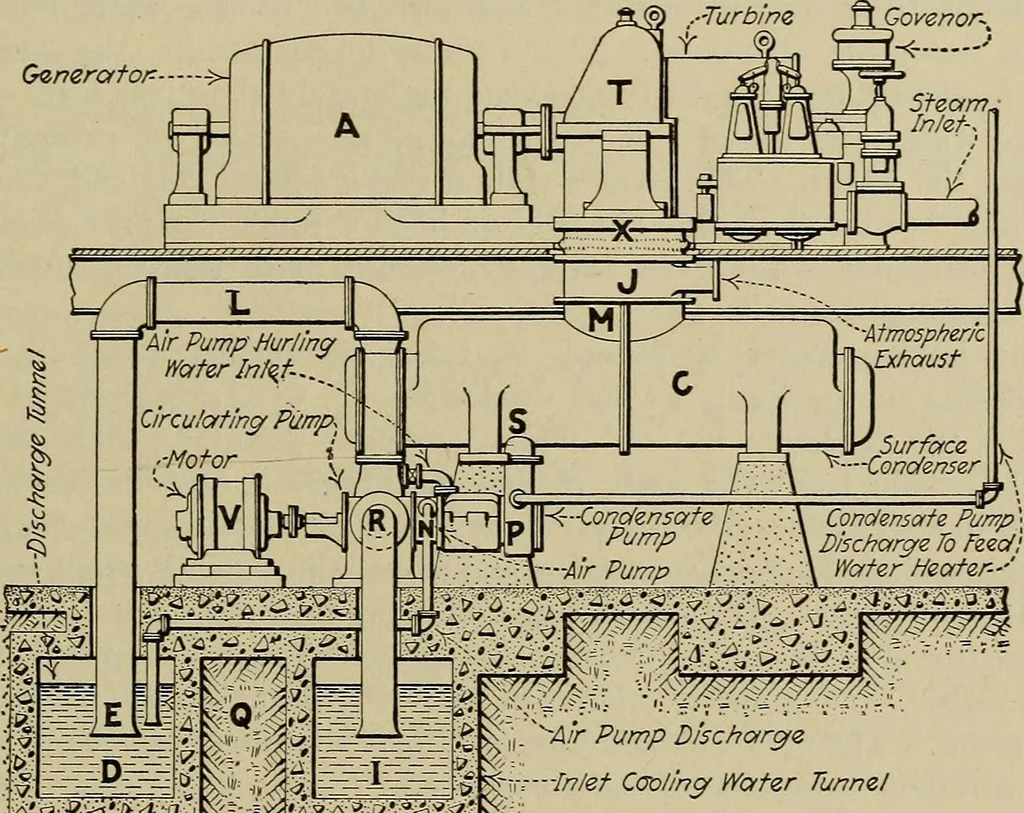

result from expansion of a portion of the compressed air down to thesuction pressure, when the piston begins a stroke. Rotatory pumps (hurling or hydro-centrifugal pumps) using slugs ofwater (Fig. 304) as pistons are sometimes used where very high vacuaare required. 355 A. A Modern Westinghouse… … p. «m w/^^/j^- :^-^^:^ -Air Pump Discharge% W}fInlet Cooling Water Turtml ^MmMiMkA -;^HU~r Fig. 309A.—Westinghouse-LeBlanc Surface Condenser Installed For Service WithTurbo-Generator Unit. The expansion joint is necessary to properly protect the tur-bine and condenser shell from excessive stress…
