Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 391

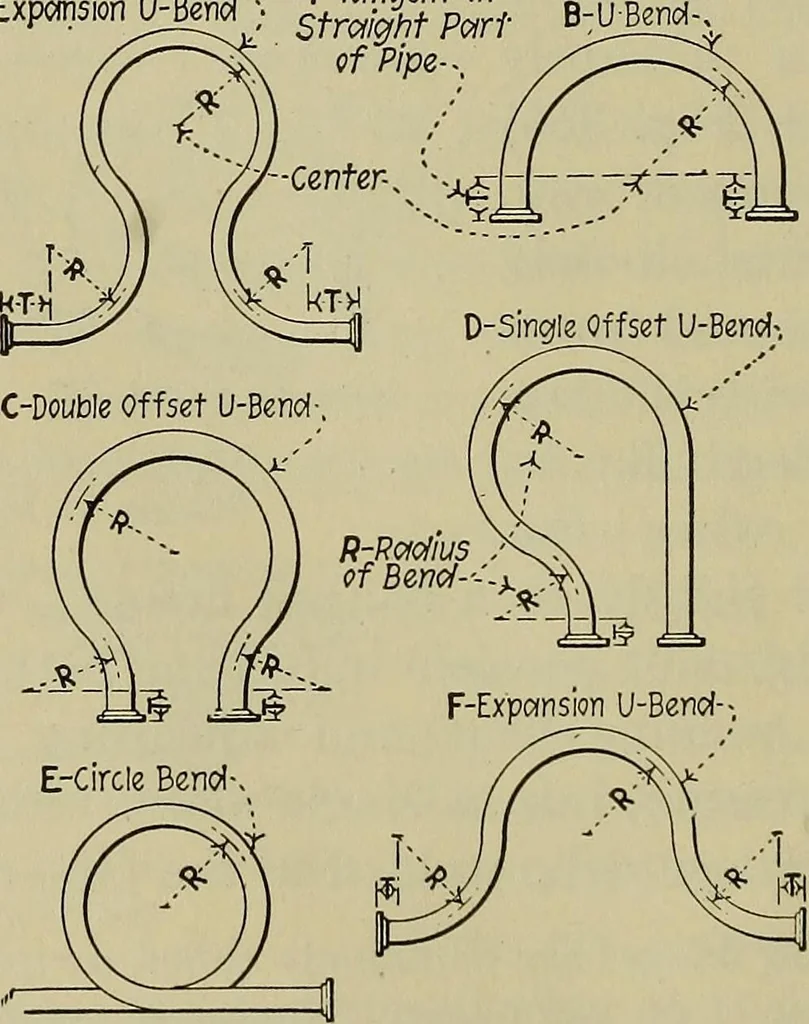

Fig. 351.—Standard Pipe-Bends For MakingTurns In Piping Systems. A-Double Offset- -Expansion U-Bend T- Tangent on Straight Part of Pipe- -, U-Bend- … Fig. 352.—Bends For Taking Up Expansion Stresses In Piping Systems. longer the radius, the greater the flexibility at the bend. Alsothe larger the bend the less the liability of buckling the pipewhen forming the bend. Sec. 43^ STEAM-PIPING OF POWER PLANTS 371 Notes.—The Minimum Advisable Radius For…
Steam power plants · Pumping machinery
