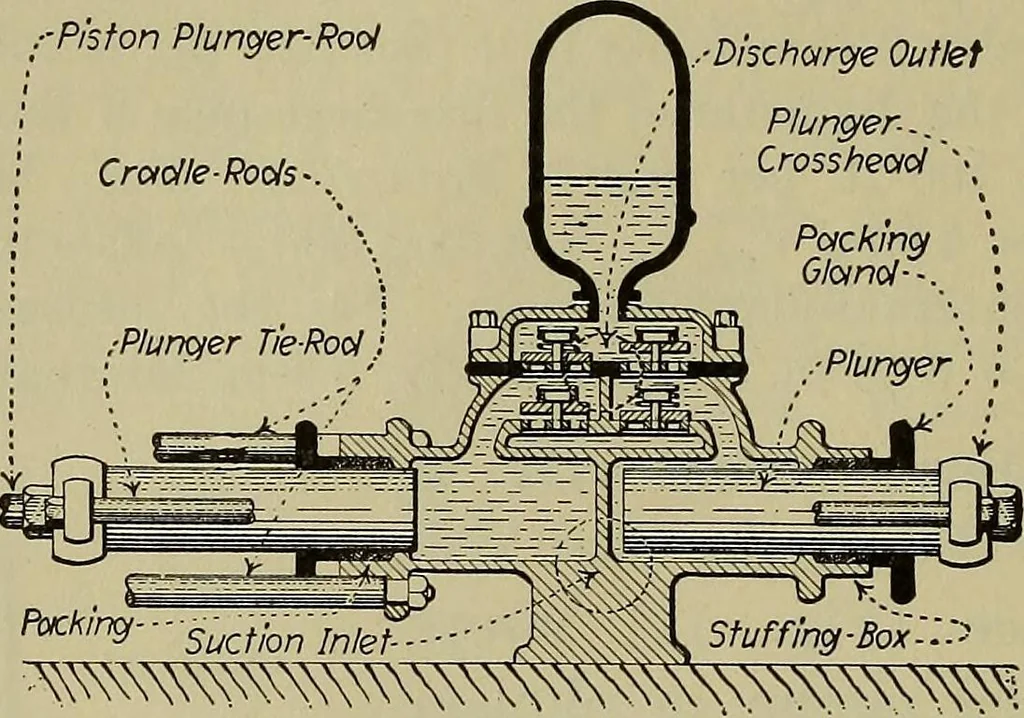

hes. N8 =number of strokes per minute. Di = density of liquid to bepumped in pounds per cubic inch. 20 STEAM POWER PLANT AUXILIARIES [Div. 1 Note.—The Effective Plunger Or Piston Area of an outside-end-packed plunger (Fig. 18) in a direct-acting steam-pump is thecross-sectional area of the plunger.… … ****- suction Inlet- ^mwWx\\\\\\\\\^ ^^W> Fig. 18. -Water-End Of Direct-Acting Steam-Pump With Outside End-PackedPlungers. sectional area of the plunger or piston minus one-half the cross-sectionalarea of the piston- or plunger-rod. Example.—What is the displacement, in cubic feet per minute, of…
