Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 424

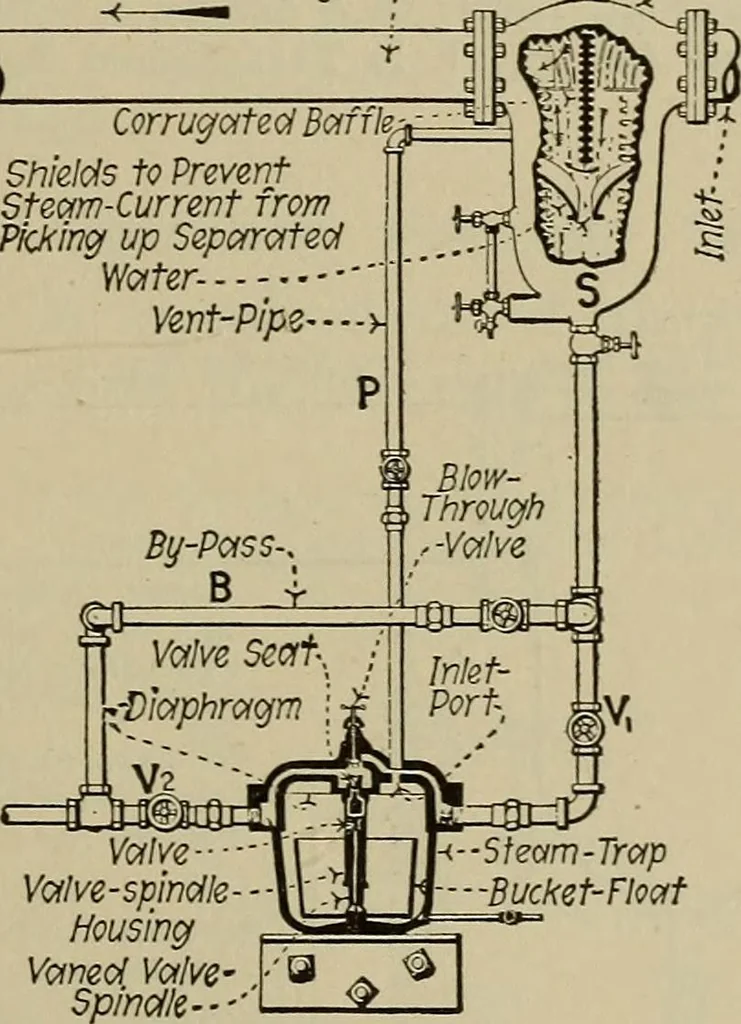

f theseparator? DIVISION 13 STEAM TRAPS 487. Steam Traps are devices for entrapping and auto-matically disposing of the water that results: (1) From con-densation and entrainage in steam-piping systems (Fig. 394, 395and 396). (2) From condensation in steam-heating apparatus,(3) From condensation in… … Fig. 394.—Nason Bucket-Float Intermittent-Discharge Medium-Pressure Steam TrapInstalled For Draining A Live-Steam Separator. Note.—Steam Traps, In General, May Be Divided Into TwoGroups: (1) Return traps (Fig. 399) or those which discharge, againstboiler-pressure, directly into the water spaces of…
Steam power plants · Pumping machinery
