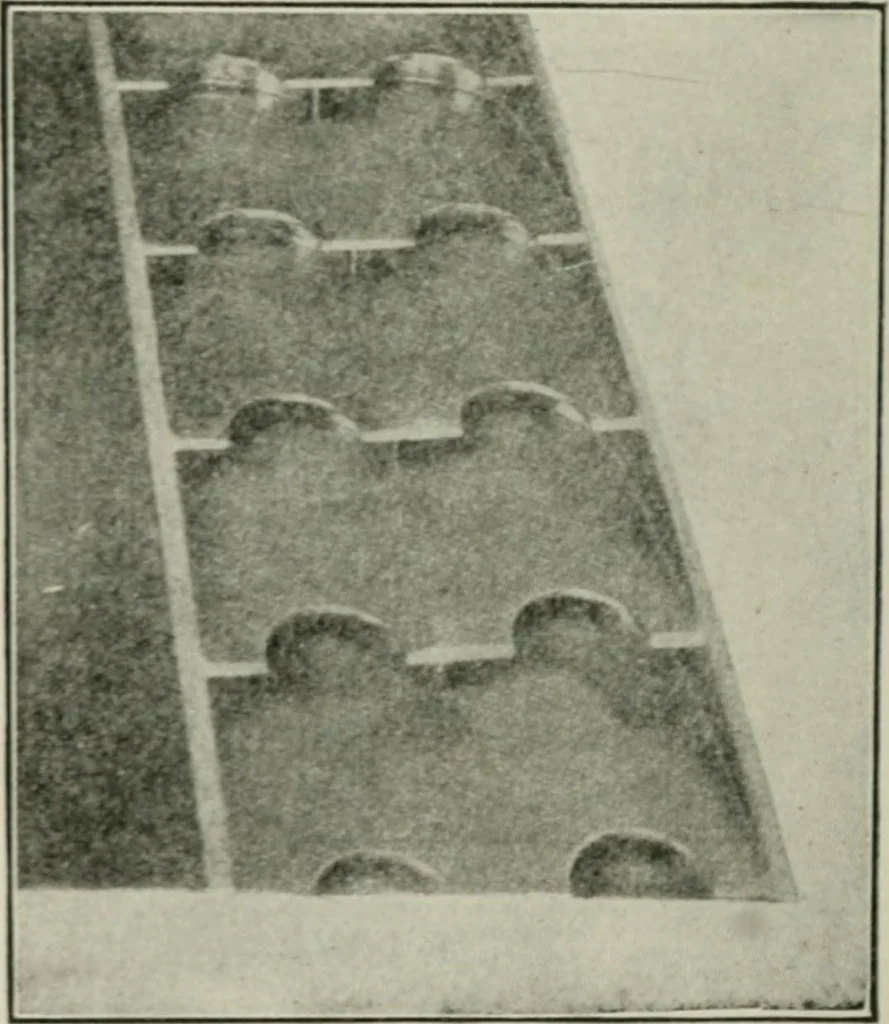

ntinuous closed cylinder in which the steam in 122 iSieam Kmum (.nrnj it? course tlirougli the wheel continually whirls or spiralsartnind and around. With this type of turhine the steamenterc the hucket wheel from the nozzle as shown in Fig.299, hut instead of escaping after it has passed… … iriG. 301 Fig. 301 sliows a portion of the rim of this style ofwlieel with its symmetrical double buckets. The steam jetis split into two symmetrical parts by the sharp middle par-tition. The direction of flow of the two steam streamsis now reversed, and they are returned to the middle planeof the…
