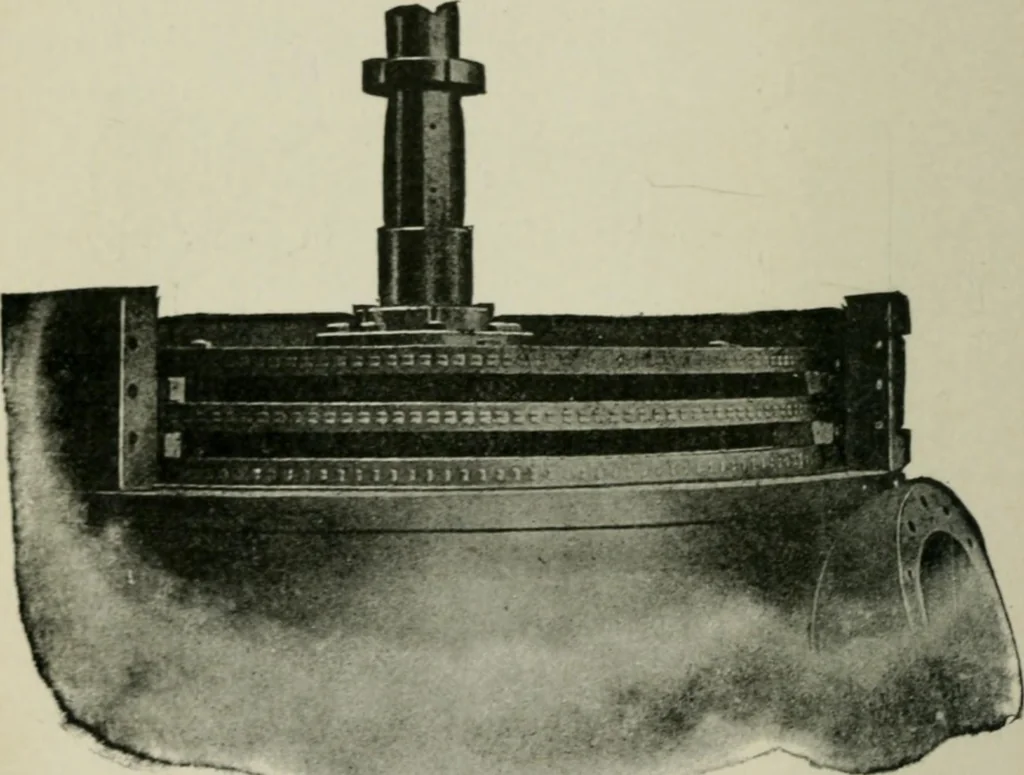

e cylinder or casing.As in the Westinghouse-Parsons type, the function of thestationary blades is to give direction to the flow of steam. 40 .S/((//// KiKjmccnng Fig. 255 illustrates one stage of a 500 K. W. turbine incourse of construction. It. will be observed tliat there aretliree wlieels, and… … Fig. 255500 k. w. cubtis steam turbine in course of construction position. The illustration in Fig. 255 shows the lower orlast stage. The clearance between the revolving and sta-tionary blades is from ^^ to -f-^ in., thus reducing thewasteage of steam to a very low percentage. The diametersof the…
