Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 46

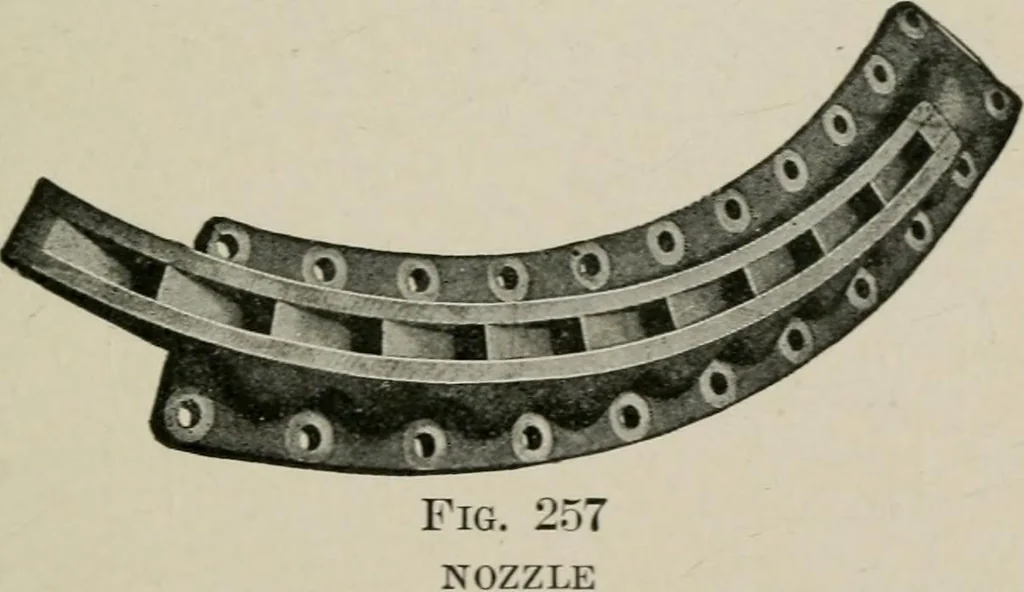

stationary buckets for curtis steam turbineFig. 256 … Fig. 257 shows a nozzle diaphragm with its variousopenings, and it will be noted that the nozzles are set atan angle to the plane of revolution of the wheel. Uidni KitfjinvvniKj Fig. 258 is a diagram of the nozzles, moving l)ln(lo.s andptationarv blades of a two-stage Curtis steam turhiiie.…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
