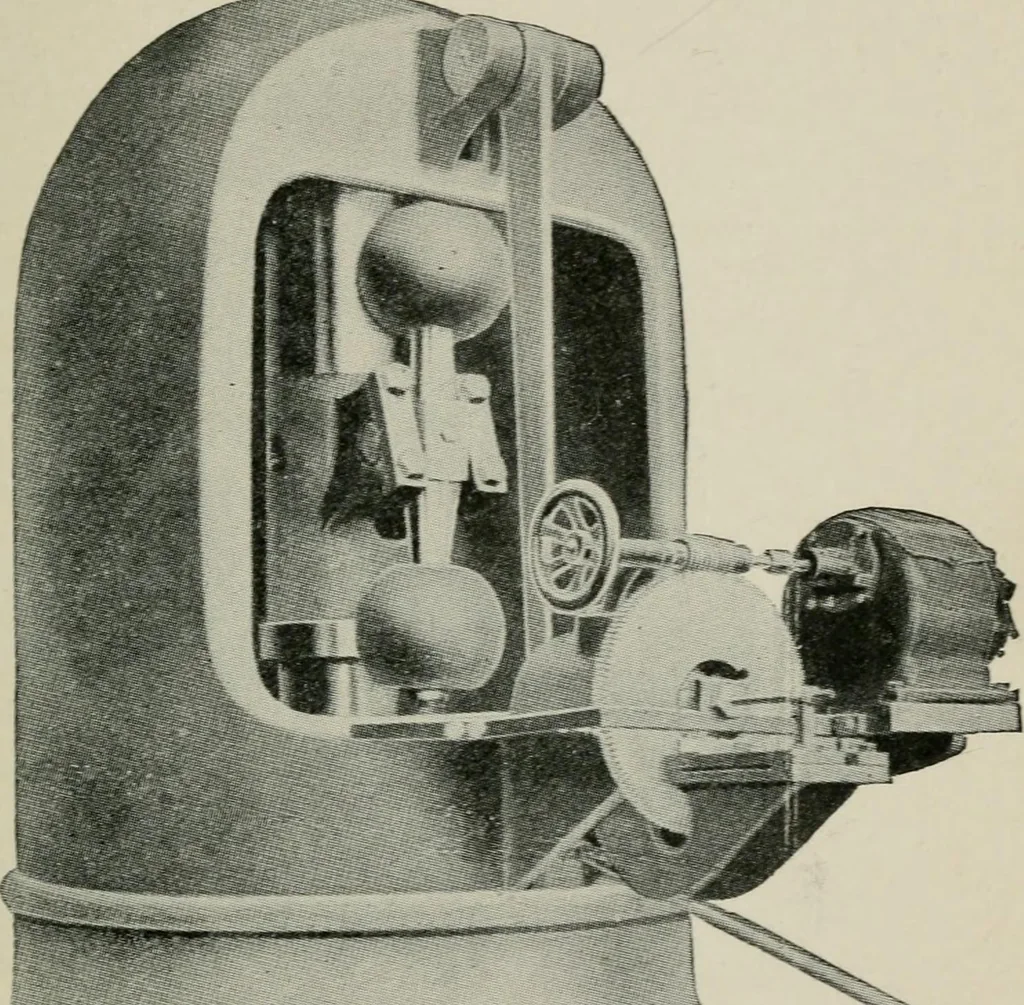

slight movement, imparts motion to levers,which in turn work the valve mechanism. The admission The Curtis Turbine 45 of steam to the nozzles is controlled by piston valves, whichare actuated by steam from small pilot valves which are inturn under the control of the governor Fig. 259 shows the … V Fig. 250 governor for 5.000 k. w. turbine form a governor for a 5,000 K. W. turbine, and Fig. 260shows the electrically operated admission valves for oneset of nozzles. 4C. Stctnii tliKj^iuenng Speed rci^iilation i« affected l)v varving tlie number ofnozzles in How, tlinl is for light loads fewer…
