Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 85

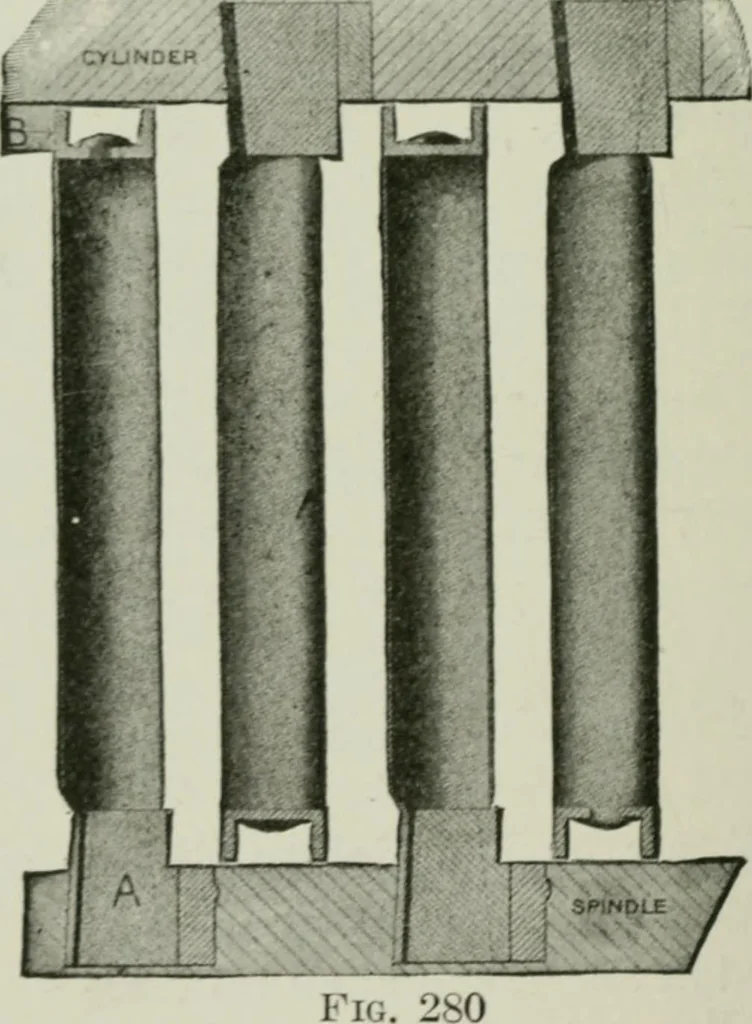

lined so as to give the required pitch andano^les to the blades. &0 >Uani Jjit(/ineenny The foundation rin,2:s arc al^^o of dove tail shape in cross-sect ion, those holding the stationary hiades are insertedin dove-tail grooves in the cylinder and those holding therevolving blades being… … it practically impossible for a blade to get out of place. The tips of the blades are held and firmly bound togetherby a shroud-ring, B, Fig. 280. The shroud-rings are made channel-shape, in cross-sec-tion, the flanges being made thin in order to preventdancferous heatin^r jn case of accidental…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
