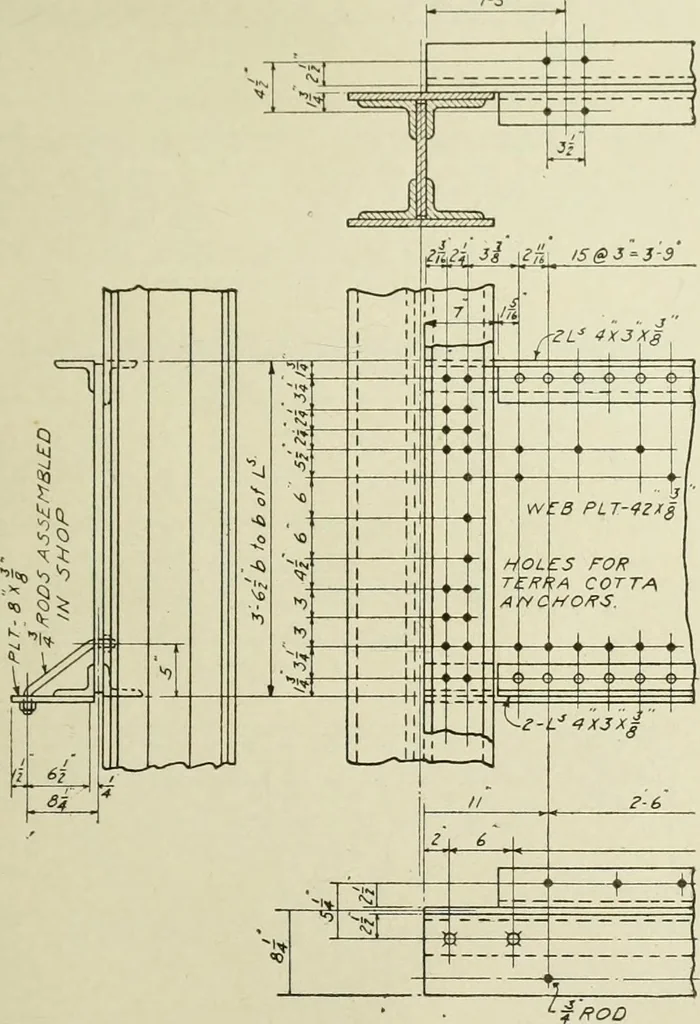

Fig. 131. Diagram Showing Bracket Connectionof Girder to Column L66 STEEL CONSTRUCTION Transportation Difficulties. The splicing of the entire girdersection may he occasioned by transportation conditions. Such asplice is expensive on account of the extra material and the fieldriv eting required,… … Fig. 132. Diagram Showing Connection of Girder to Face of Column section. A girder of any length likely to occur in building construc-tion can be shipped by rail, so that the matter involves only thecomparison of the extra freight cost with the cost of the splice.But transportation by boat involves…
