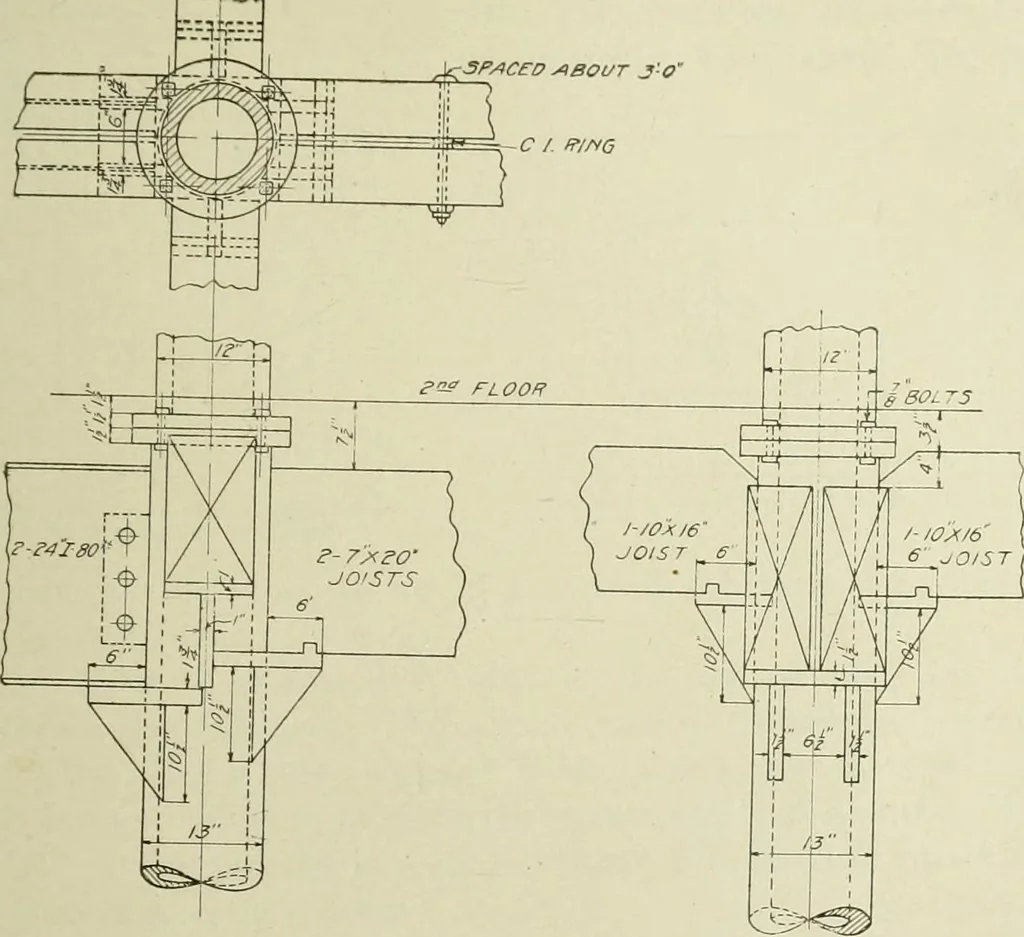

ctions jur Cost /r«« Coluttms- 232 STEEL CONSTRUCTION Details of Construction. Splices. Splices in cast-iron columnsare made by means of flanges as shown in Fig. 157. The load istransmitted from upper to lower column by hearing. The hearingsurfaces must he milled exactly at right angles to the axis… … Fig. 1G0. Double Beam Connections to Cast Iron Columns of the milled surface. The flange is made wide enough to take arow of f-inch bolts. Four or more bolts are used. The splice can be made by means of a dowel plate. It is not sosatisfactory as the flange splice. It is used when there is no space…
