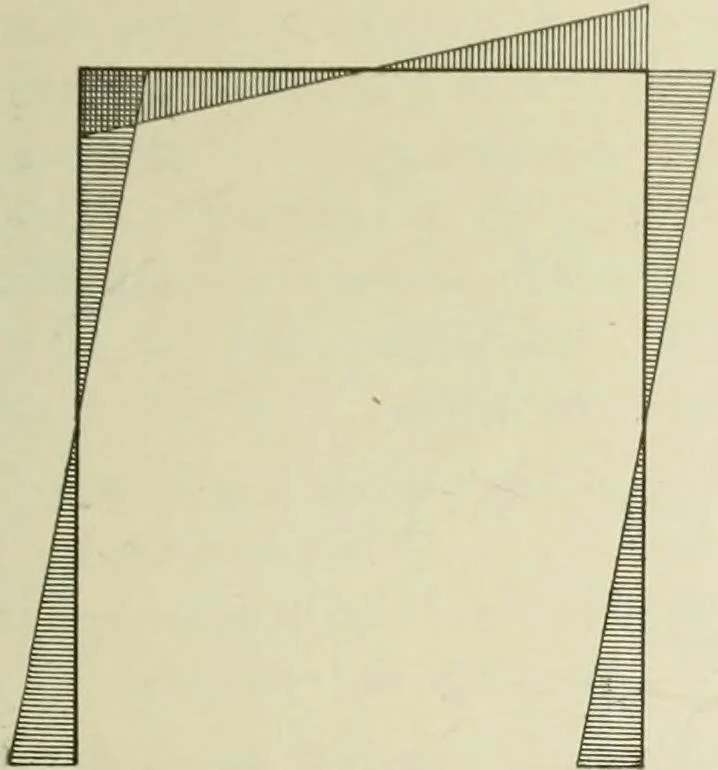

er c. This couple is furnished by the foundation which is 2 IS STEEL CONSTRUCTION assumed to be ample to resist the bending moment in the post at c,which is WX%H=\ WHIn like manner the bendingmoments at b and d can heshown to be \ WH. Note thatthe numerical value of the bend-ing moment is the same… … Fig. ISO. Moment Diagram of Single Rec-tangular Panel in a bin b d in a c 2 II , compression I —, compression 1 =iW —, tension Problem Refer to Fig. 179. Assume W equals 10,000 pounds, H equals 16 feetL equals 20 feet, Compute the axial stresses in the three members of the frame.Compute the bending…
