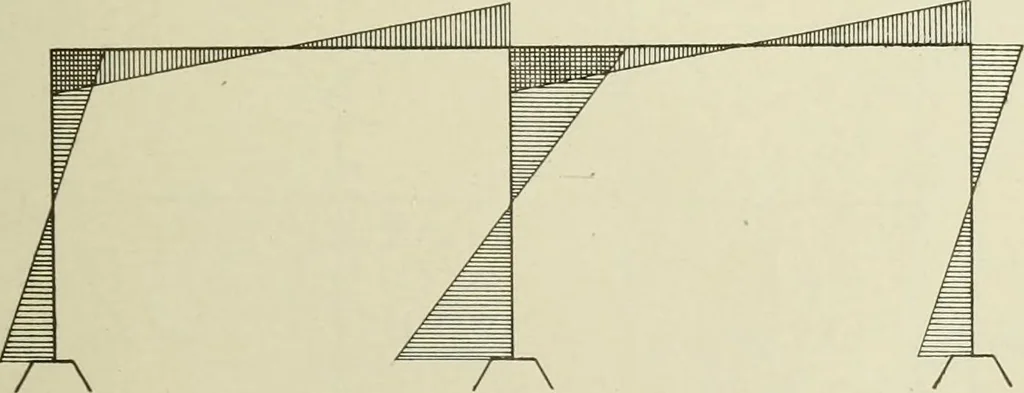

se at theintermediate columns. Thus the reactions at 1, -2, and 3 are \ W,\ W, and | W, respectively. By reasoning similar to that used forthe single panel, the maximum bending moments are found to be: at the base and top of columns 1 and 3 \ Wxh H = \WHat the base and top of column 2 § WXi H = \WH… … Fig. 182. Moment Diagram for Frame of Two Rectangular Panels Then the bending moment at all maximum points is \W H. Butcolumn 2 is common to both, hence its total stresses are the algebraicsums of the stresses from the two panels. As the bending stressesare of the same sign, the bending stresses in…
