Steel ships, their construction and maintenance : a manual for shipbuilders, ship superintendents, students, and marine engineers (1901)
Walton, Thomas · London : Charles Griffin & Co. ; Philadelphia : Lippincott · leaf 132

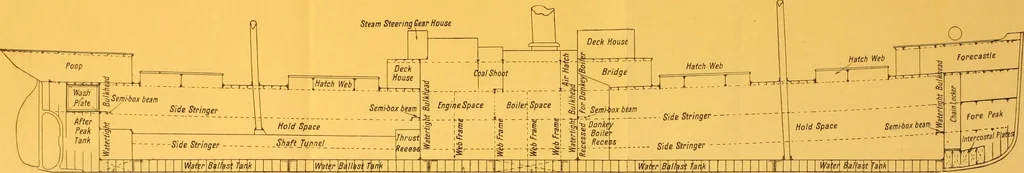

rt of thekeel to the top of the upper deck beams with the normal round up, andthe half girth of the midship frame section measured from the centre lineat the top of the keel to the upper deck stringer plate. By multiplying the 1st numeral by Lloyds length,* the 2nd numeral * See page 50. Fig. 46.… … ti-m 1111 \Mr\Bkim^^k\ 11 III I w\Mii^s^u\ 111 Tini I u I [m^vA-xxr Tunnel Well Water Ballast Tank Well underBoilers Fig. 47.sectional profile of a raised quarter-deck vessel, having a poop, raised quarter-deck, and bridge house combined, and a forecastle. This Vessel is built on the Web Frame…
