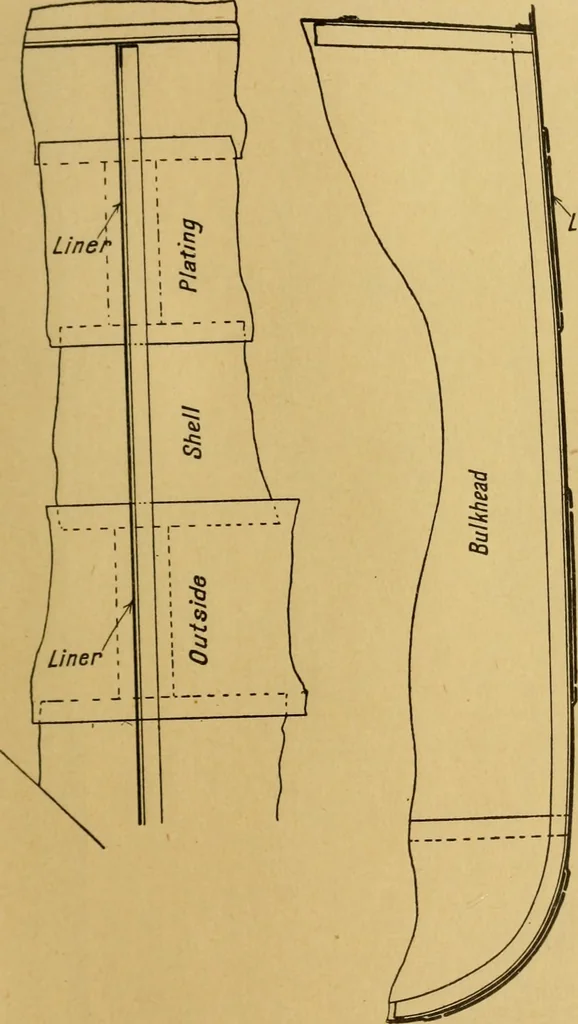

strakes should be double riveted, and thebutts preferably overlapped and treble riveted with three completerows of rivets. Two rivets should pass through the seams upon everyframe instead of the single rivet in ordinary cargo steamers, in order toensure oil-tightness. If the butts are not lapped,… … Vner A Co 5 T Co 4} Co :5i Fig. 81. plan showing vertical and horizontal stiffenersupon a transverse bulkhead, and connectionsto longitudinal bulkhead and side stringers,(oil steamer.)
