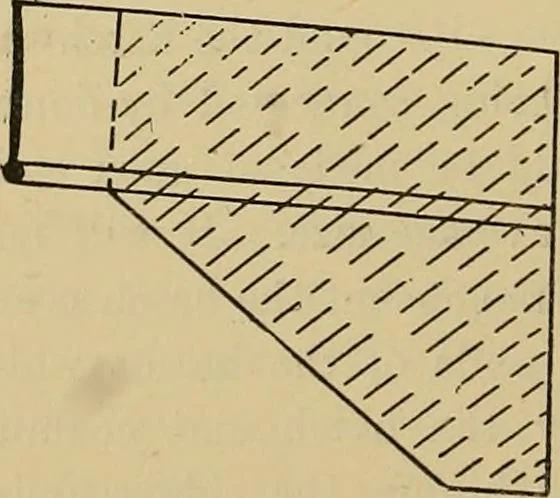

,like the ordinary beams, fits into the bosomof the frame as shown in fig. 112. Inwelded knees, preferably the bulb should bepreserved right round the knee, and shouldfinish upon the outside of the frame, asshown in fig. 48, as it affords both stiff-ness and strength to resist collapse undersevere,… … Fig. 113.—Bulb PlateBracket Knee. DETAILS OF CONSTRUCTION. 199 openings, with only an occasional specially strong beam run continuouslyfrom side to side of the vessel. These half beams are supported in a waysimilar to that explained for beams at hatch sides. Stout steel coamingplates are fitted…
