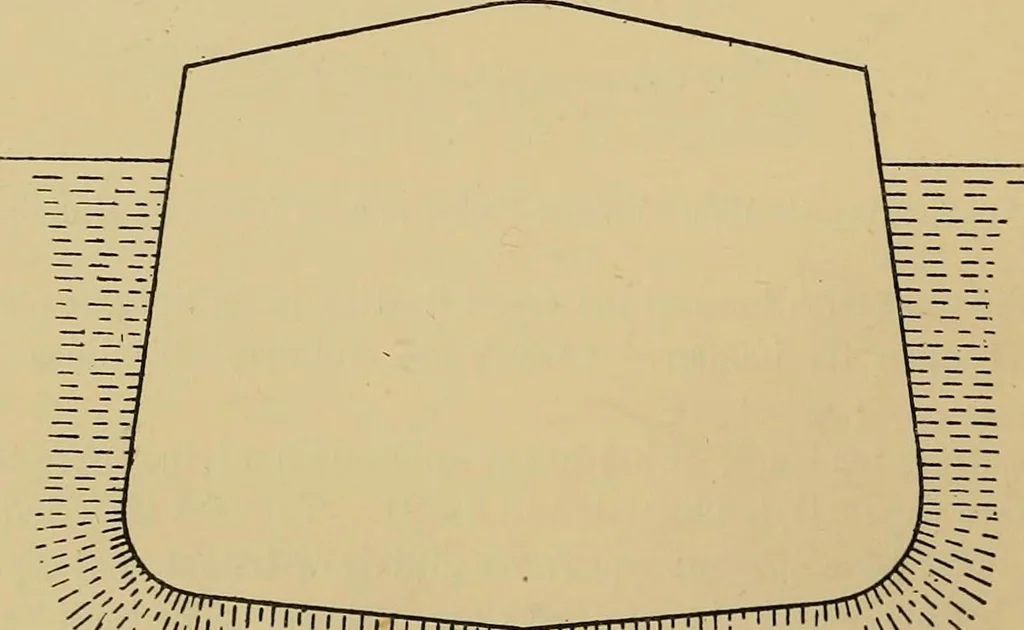

Ilii,;:mil M.r.v^ Fig. 21.—Tendency to Transverse Deformation due to Water Pressures. boilers, and bunkers (especially in a light ship). The tendency is to elon-gate the vessel vertically, and to cause the insufficiently supported bottomto droop; while the tendency for the topsides to contract… … ;\tvv^ Fig. 22.—Sliowiug tendency to produce Vertical Elongation. same transverse framing as enumerated for fig. 21, assisted by the samelongitudinal girders. Here, especially, is seen the great value of pillarsacting as ties, binding together the top and bottom of the vessel, and hold- STRESS AND…
