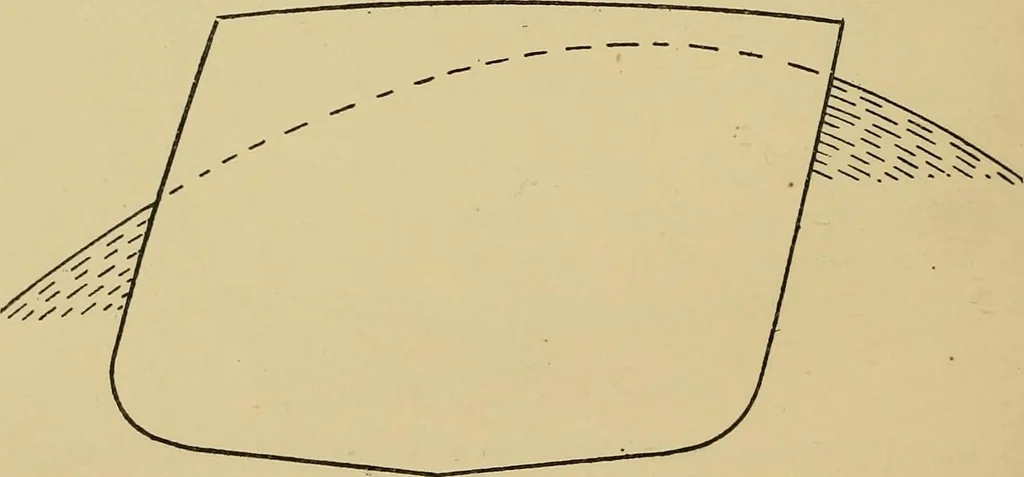

us pressure is experienced on the bottom in the way of each block,with the accompanying tendency to crush in the bottom and produce greatdistortion locally in the transverse form^ and serious damage to the bottom. The second is that of a vessel in dry dock, when an ample number ofblocks has been… … Fig. 24.—lUustratiiig tendency to deformation due to Racking Stresses. and complicated when the vessel has cargo in the holds, or, in addition tothe weight of the engines and boilers, side or cross bunkers are full, ordeep water-ballast tanks happen to be full. An approximation to theamount of the…
