Stereotomy : Problems in stone cutting. In four classes. I. Plane-sided structures. II. Structures containing developable surfaces. III. Structrues containing warped surfaces. IV. Structures containing double-curved surfaces. For students of engineering and architecture (1875)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York : J. Wiley and son · leaf 134

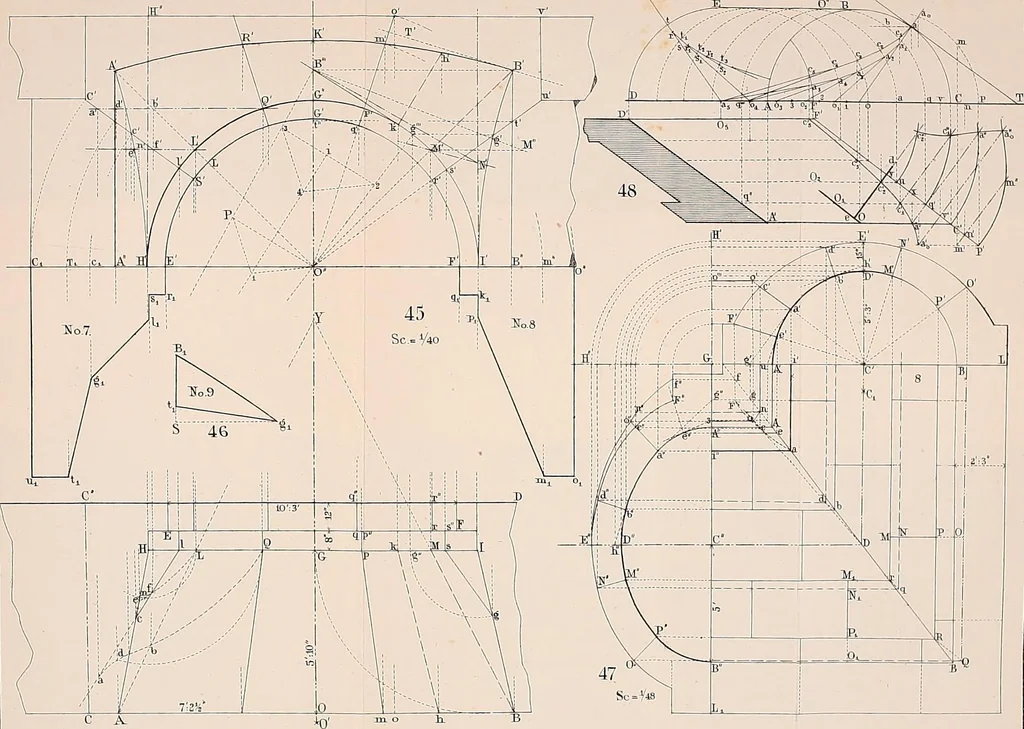

orizontal through N; orthe plane of the joint might have been revolved about OK —0K as an axis, when the circular joint would have fallen onKE and W at n. Then make r^N = nW, which will giveN, as before. Varied constructions are useful, in case some one of themdoes not conveniently apply to certain… … I STONE-CUTTING. 105 terns of the plane and developable faces of all the stones, witha sufficient number of bevels to insure the correct relative po-sitions of all the surfaces. After the numerous preceding examples of developing theconvex surfaces of stones of irregular shape, the construction…
Stereotomy
