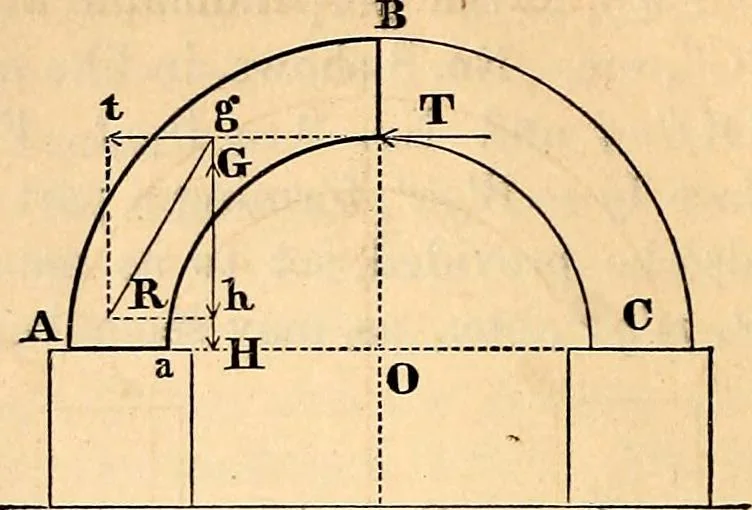

al form, the student can beprepared both to design and superintend the construction ofan oblique arch as commonly built, and to read the works inwhich the subject is treated more elaborately. Preliminary Topics.Elementary Mechanics of the Arch. 61. Let ABC be an ordinary semi-cylindrical arch, of… … -£■ Fig. 4. thus actuated by its unresisted weight, would fall, by turningabout a as a centre. As it would prevent the use of the archto oppose GH by props underneath, it is counteracted by a hori-zontal force acting, as at T, at any point of BT, and this hor-izontal force consists in the reaction…
